Removing The Navigation Unit With Retaining Bracket

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the navigation unit has to be replaced, the coding must be read out prior to removal using the PIWIS tester P 9718 .

Information

If the navigation unit is removed with the retaining bracket, then new clips must be used before reinstallation.

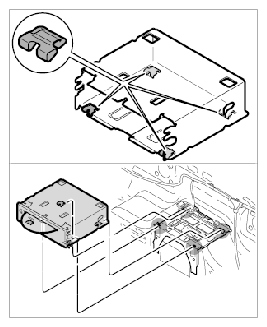

Give the navigation unit with the retaining bracket a pull forward, and lever out the clips with a screwdriver if necessary.

Fig 1: Removing Navigation Unit With Retaining Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

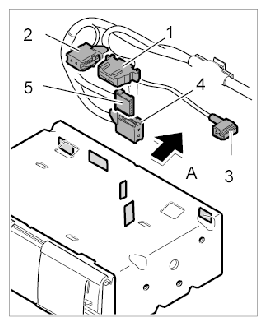

Unlock the electrical plug -1, 2, 3- on the navigation unit and remove the navigation unit with holder.

Fig 2: Removing Electrical Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
