Removing The Navigation Unit (US Version)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

If the navigation unit has to be replaced, the coding must be read out prior to removal using the PIWIS tester P 9718 .

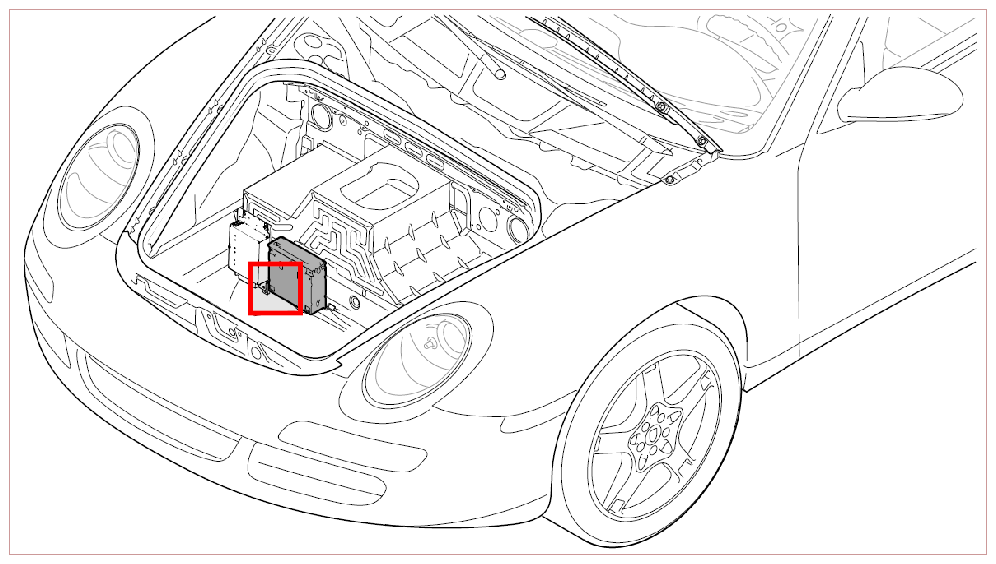

Fig 1: Identifying Navigation Unit Location (C4 USA)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove navigation unit.

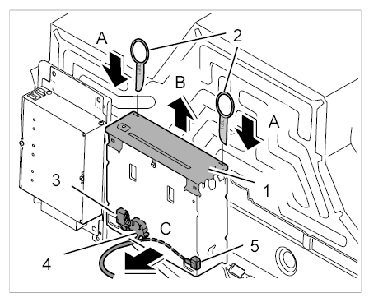

Fig 2: Removing Navigation Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Insert disassembly tool 9570/1 -2- into the navigation unit -1- (-arrows A- ) and lift up the navigation unit -1- (-arrow B- ).
2. 1.2. Release the connector -3 to 5- on the navigation unit -1- and pull off -arrow C- .
  Pull out navigation unit -1- (-arrow B- ).
Remove retaining frame for navigation unit.

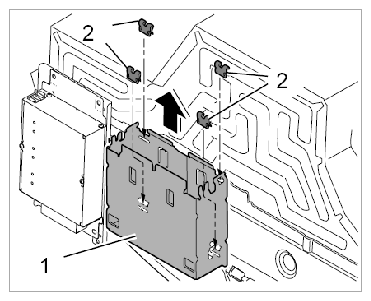

1. 2.1. Give the retaining frame -1- a pull upward, and lever out the clips -2- with a screwdriver if necessary.
Fig 3: Removing Navigation Unit Retaining Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
