Removing Navigation Unit: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the navigation unit has to be replaced, the coding must be read out prior to removal using the PIWIS tester P 9718 .

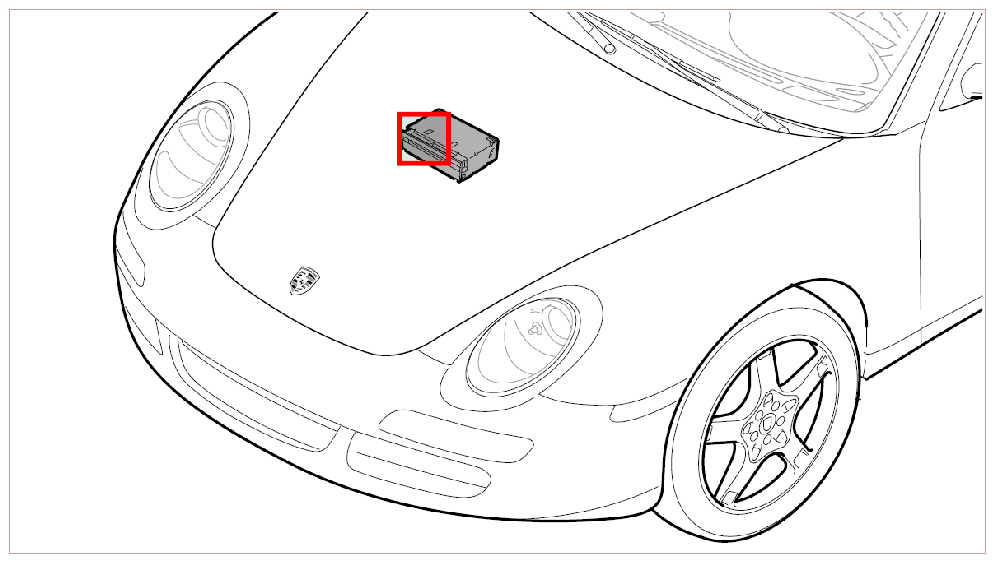

Fig 1: Identifying Navigation Unit Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove ignition key.

Depending on the equipment I No., the navigation unit is located next to or on the CD - changer.

Push the removal tool 9570/1 -1- into the navigation unit and pull the navigation unit forward.

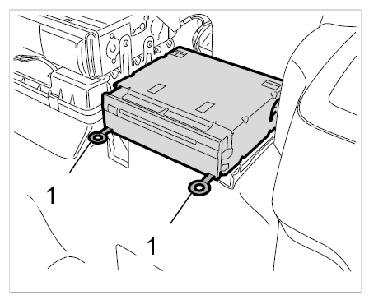

Fig 2: Identifying Removal Tool (9570/1) Into Navigation Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock the electrical plug -1, 2, 3- on the navigation unit and pull out the navigation unit.

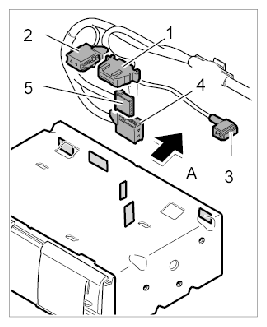

Fig 3: Removing Electrical Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
