Installing Navigation Unit: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the navigation unit into the retaining bracket and plug into the electrical plug connections -1, 2, 3-  until the plug is felt to click into place.

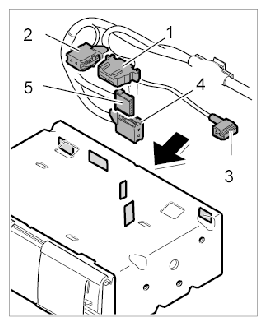

    Fig 1: Installing Electrical Plug
    G09830482Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Slide the navigation unit further into the retaining bracket until the navigation unit is felt to click into place.
