Installing The Navigation Unit With Retaining Bracket

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

If the navigation unit is removed with the retaining bracket, then new clips must be used before reinstallation.

Install new clips, push in the navigation unit in the retaining bracket until the navigation unit is felt to engage.
Push in electrical plug connections -1, 2, 3- until plugs are felt to engage.

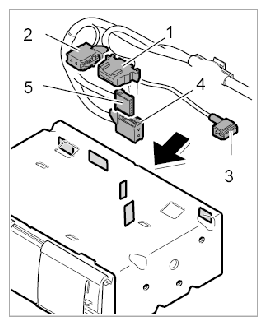

Fig 1: Connecting Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the navigation unit with retaining bracket on the body and push into the four holders. Check proper seating of holder by pulling up on the retaining bracket.

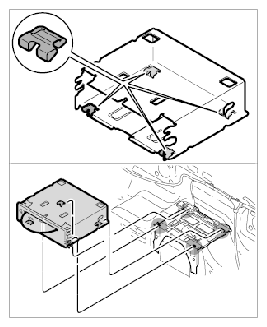

Fig 2: Installing Navigation Unit With Retaining Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
