Installing The Navigation Unit (US Version)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install retaining frame for navigation unit.
    1. 1.1. Push new clip -2-  onto the retaining frame for navigation unit -1-  .
    2. 1.2. Position the retaining bracket for navigation unit -1-  on the body and push into the four holders. Check proper seating by pulling up on the retaining frame for navigation unit -1-  .

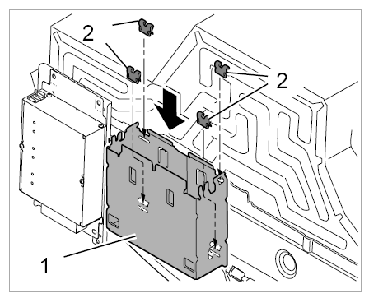

    Fig 1: Installing Navigation Unit Retaining Frame
    G09830486Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    If the navigation unit is removed with the retaining bracket, then new clips must be used before reinstallation.

  2. Install navigation unit.
    1. 2.1. Insert navigation unit -1-  in the retaining frame -arrow A-  and push on connector -3 to 5- -arrow B-  .
    2. 2.2. Slide the navigation unit -1-  further into the retaining bracket -arrow A-  until the navigation unit is felt to engage.

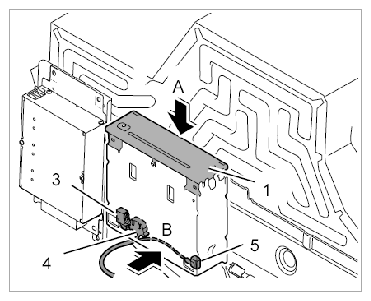

    Fig 2: Installing Navigation Unit
    G09830487Courtesy of PORSCHE CARS NORTH AMERICA, INC.
