Installing PCM Display And Operator Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the PCM unit has to be replaced and a telephone control unit is installed:
    1. 1.1. Install the telephone control unit. → Installing Control Unit For Telephone
  2. Connect electric plug connections and antenna connectors on the back of the PCM unit until the connectors engage securely.

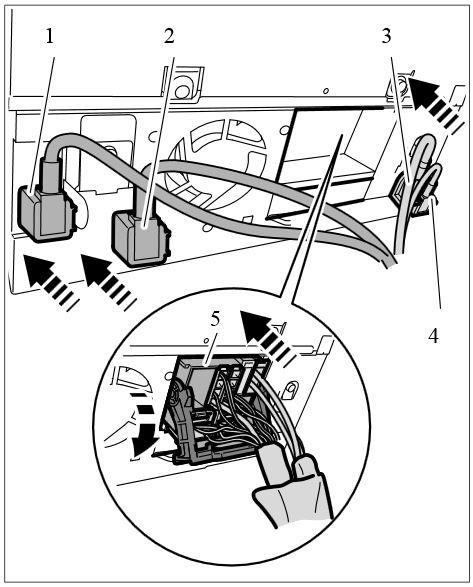

    Fig 1: Installing Electric Plug Connector And Antenna Line
    G09830458Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Check that the locking lugs on the PCM unit are turned out. Carefully press out the latches using a hexagon-socket wrench by turning them 90° clockwise if necessary.

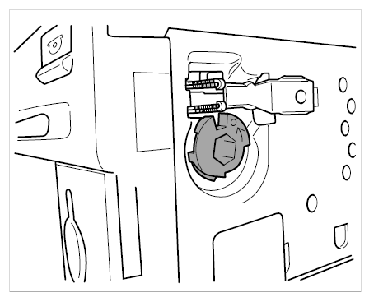

    Fig 2: Identifying PCM Unit Locking Lugs
    G09830459Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Slide the PCM unit into the installation slot until the locks engage on the PCM housing.
