Removing Display For The PCM Operator Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition and remove ignition key.

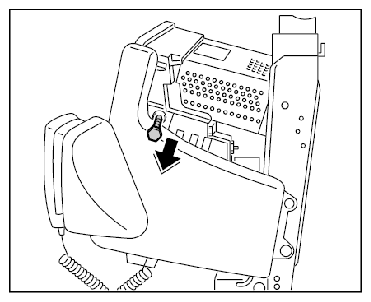

Loosen the side fastening screw a few turns.

Fig 1: Removing PCM Side Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

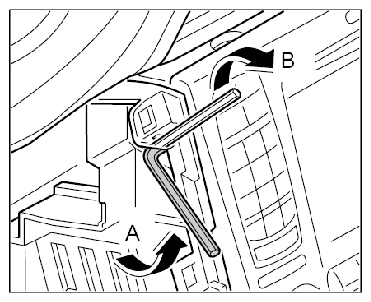

Insert a hexagon-socket wrench sideways into the screw connection of the PCM detent hooks.
Close the detents (2 each side) with an Allen key -A- and carefully pull out the PCM.
For reinstallation, open the detents with the hexagon-socket wrench -B- .

Fig 2: Opening Detents
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The number of plug connections will vary, depending on the I No. (CD changer, amplifier, etc.).

The variant without additional audio components (external Most control units) has a jumper (output to input) connected to the optical waveguide plug.

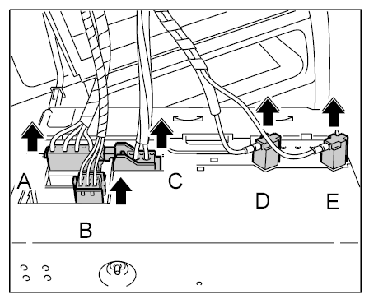

Unlock antenna plug -D, E- and remove.
Unlock and disconnect the electrical plug connections in the order -A, B, C- .

Fig 3: Locating PCM Plug Connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
