Installing Display And PCM Operator Control Unit

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Push on the electrical plug connections for the display and operator control unit in the sequence -C, B, A- and the antenna amplifiers -D, E- until the plugs are felt to engage.

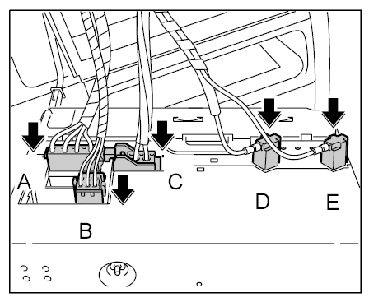

Fig 1: Locating PCM Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check that the locking tabs on the PCM are out, open the lock with an Allen key if necessary.

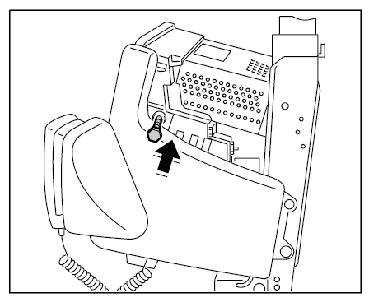

Fig 2: Identifying PCM Locking Tabs
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Before sliding the PCM/radio into the installation slot, make sure that the electric lines are not trapped by the PCM/radio or damaged.

After installation of a new PCM display and operator control unit/radio, the system must be activated using PIWIS Tester II 9818 . → Programming PCM Display And Control Unit
Push the navigation unit into the installation slot until the locks engage on the PCM housing.
Screw in the locking screw for the PCM and tighten it.

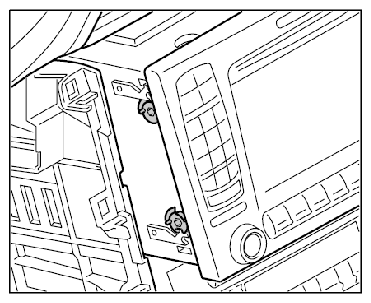

Fig 3: Installing PCM Side Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
