Removing The Roof Transport System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

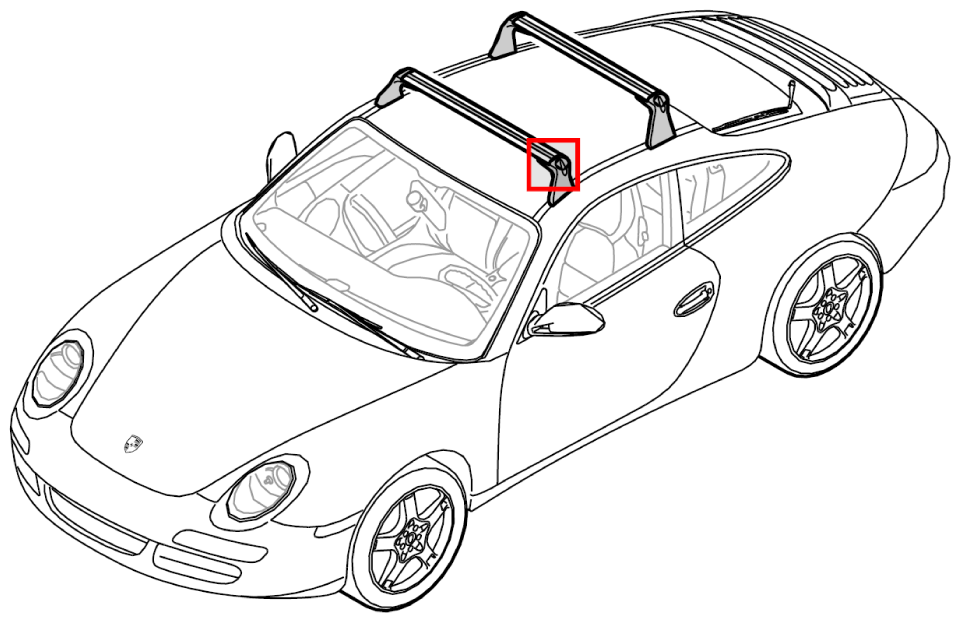

Fig 1: Identifying Roof Transport System Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

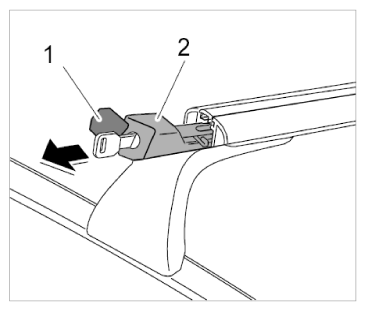

Open cover flaps -1- on the lock handles -2- .

Fig 2: Opening Cover Flaps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock the lock handles -2- and pull out of the support tubes as far as the stop.

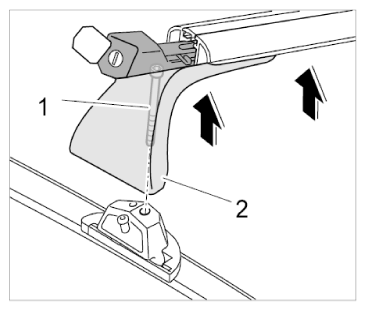

Unscrew fastening screw -1- and remove bracket -2- .

Fig 3: Removing Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

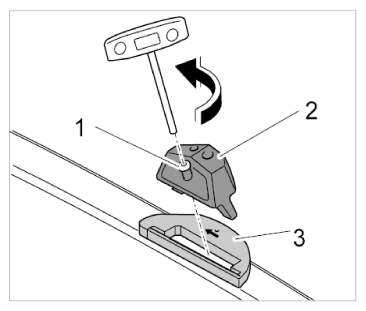

Unscrew fastening screw -1- and remove adapter -2- together with base -3- .

Fig 4: Removing Adapter With Base
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

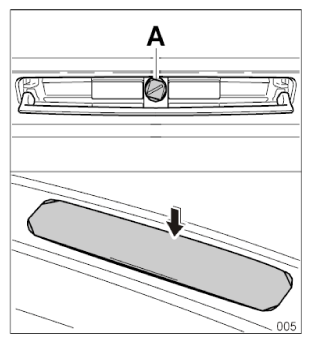

Screw the screw plug -A- into the base plate to protect against corrosion.

Fig 5: Removing Base Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close flaps in the roof joint cover strips.
