Installing The Roof Transport System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

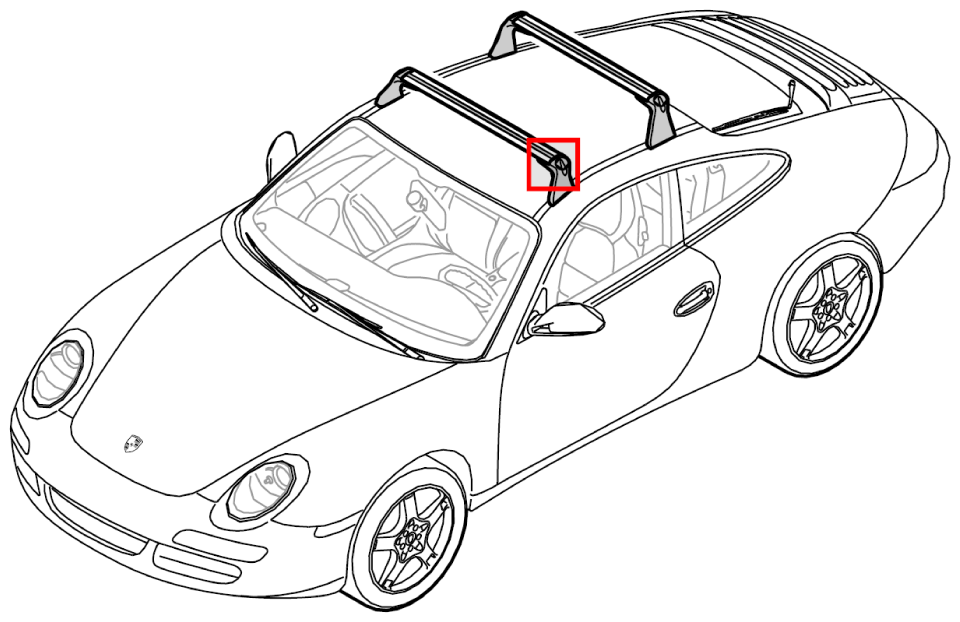

Fig 1: Identifying Roof Transport System Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

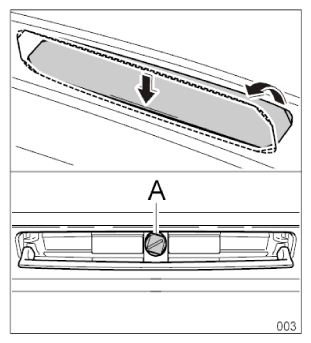

Open flaps in the roof joint cover strips.

Fig 2: Opening Flaps Of Roof Joint Cover Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the screw plug -A- from the base plate and keep in a safe place.

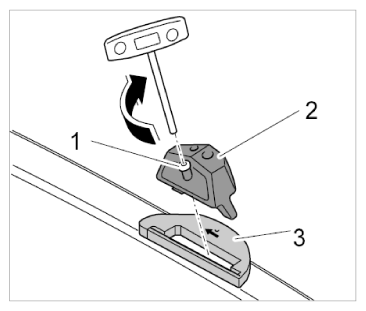

Position base -3- in the cut-out of the roof joint cover strip.
Position adapter -2- , align with the base and secure to vehicle with the fastening screw -1- .

Fig 3: Installing Adapter With Base
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Observe marking (front/rear) on underside of support tube.

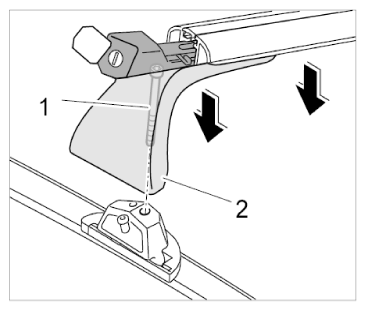

Carefully position bracket -2- on the adapter and tighten with fastening screw -1- .

Fig 4: Installing Bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

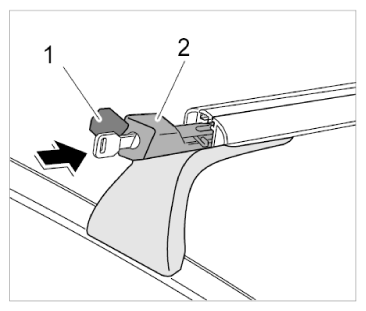

Insert lock handles -2- into the support tube ends, lock them and push in caps -1 - of lock cylinder.

Fig 5: Closing Cover Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

For further information on the Roof Transport System see: → WM 669219 REMOVING AND INSTALLING THE ROOF TRANSPORT SYSTEM
