Installing Base Plate Of Roof Transport System

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

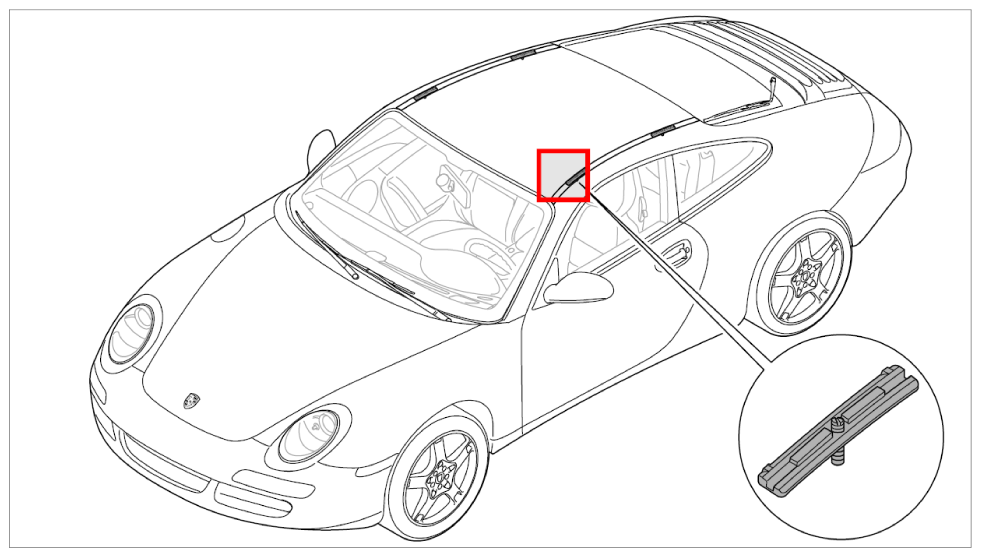

Fig 1: Identifying Base Plate Of Roof Transport System Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Contact surface of roof channel and base plate of Roof Transport System must be free of dirt and grease.

Apply adhesive -3- → SEALING MATERIAL on the underside of the base plate -2- .
Position base plate -2- of Roof Transport System in and parallel to the roof channel. Screw in fastening nut -1- from inside and tighten. → Tightening torque: 23 Nm (17 ftlb.)

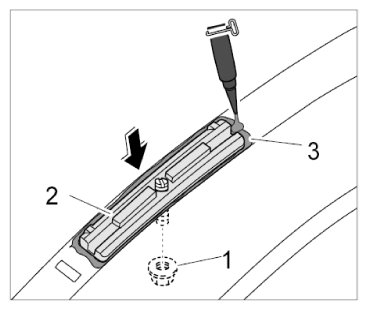

Fig 2: Installing Base Plate Of Roof Transport System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Lightly spread adhesive -3- with a brush.
Patch new sealing face and damage to top-coat paint in area of base plate with same color as the vehicle.
Push metal strut of roof liner -1- into the plastic clips -2- .

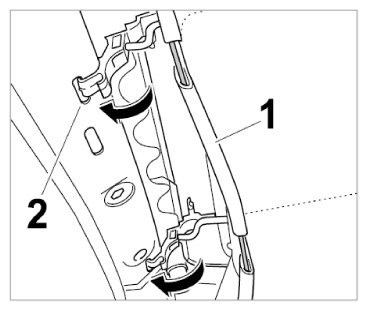

Fig 3: Engaging Headliner At Sides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install C-pillar trim. → INSTALLING C-PILLAR TRIM
Install A-pillar trim. → INSTALLING A-PILLAR TRIM
Install roof joint cover strip. → Installing Roof Joint Cover Strip
