Removing Mirror Glass

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

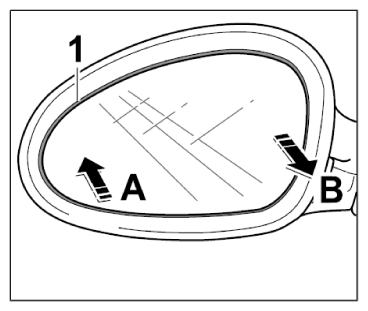

  1. Press outside of mirror glass -1-  inwards -arrow A-  and carefully pull it out on the inside -arrow B-  .
    Fig 1: Removing Mirror Glass
    G09827031Courtesy of PORSCHE CARS NORTH AMERICA, INC.

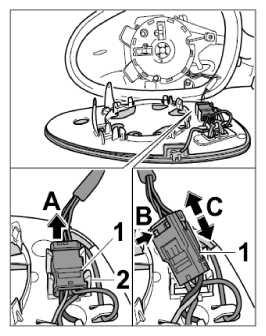

  2. Unclip plug connection for mirror glass -1-  out of mirror glass bracket -2-  (-arrow A-  ).
    Fig 2: Disconnecting Plug Connection
    G09827032Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Release plug connection for mirror glass -1-  by pressing the locking lug -arrow B-  and pull it off -arrows C-  .
