Installing Mirror Glass

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

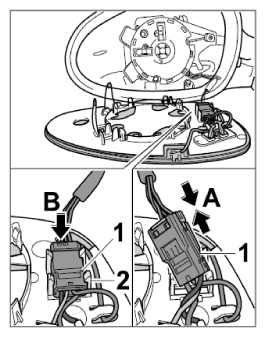

Connect plug connection for mirror glass -1- (-arrows A- ) until it engages securely.
Clip plug connection for mirror glass -1- into mirror glass bracket -2- (-arrow B- ).

Fig 1: Locking Plug Connection

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert mirror glass.

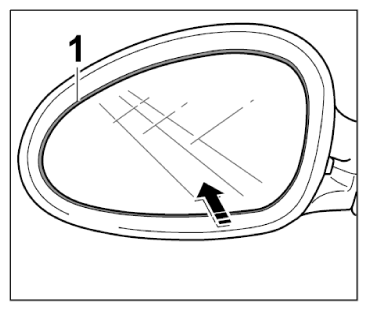

Carefully press in center of mirror glass -1- (-arrow- ) until the glass engages securely in the adjustment mechanism.

Fig 2: Installing Mirror Glass

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
