Installing Spoiler Drive: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Push together both connectors on motor for spoiler drive -2- .

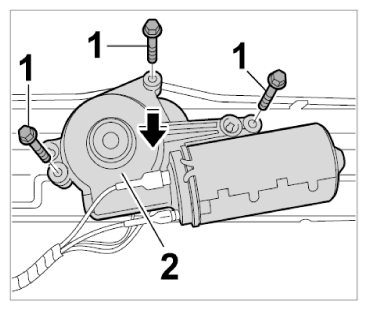

Fig 1: Installing Motor For Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position spoiler drive -24- with wire harness on rear lid and tighten the fastening screws -22 and 23- . Tightening torque → : 9.7 Nm (7 ftlb.)

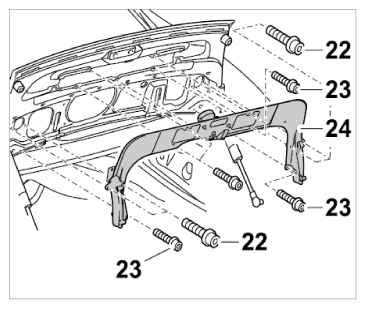

Fig 2: Installing Spoiler Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push together connector for engine compartment lighting -C- and for engine compartment fan -B- , until they are felt to engage. Slide auxiliary stop light line with grommet through the opening in rear lid until grommet -A- can be pressed in.

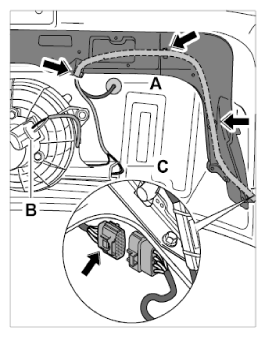

Fig 3: Securing Wiring Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install auxiliary brake light. → INSTALLING AUXILIARY HEADLIGHT
Push the plug connection for the rear wire harness together until it is felt to engage.
