Installing Upper Part Of Spoiler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

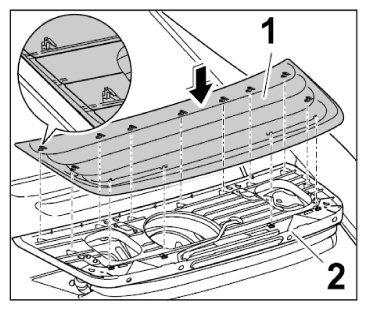

  1. Fit upper part of spoiler -1-  on the lower part of the spoiler -2-  (-arrow-  ). Ensure that the locking lugs -inset-  have engaged.
    Fig 1: Installing Upper Part Of Spoiler
    G09826997Courtesy of PORSCHE CARS NORTH AMERICA, INC.

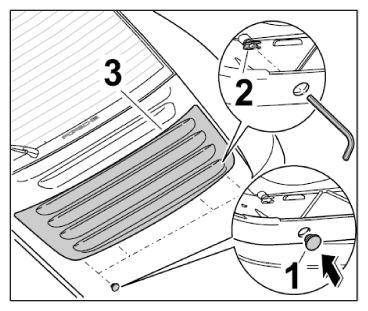

  2. Tighten clamping screws -2-  . → Tightening torque: 3.0 Nm (2.0 ftlb.)±1.5 Nm (1.0 ftlb.)
    Fig 2: Securing Upper Part Of Spoiler
    G09826998Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press in plastic stopper -1-  (-arrow-  ).
