Installing Lower Part Of Spoiler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position lower part of spoiler -2-  on the hinge -3-  . Using the threaded plate -4-  and the fastening nuts -1-  , screw in the lower part of the spoiler securely. → Tightening torque: 9.7 Nm (7.5 ftlb.)

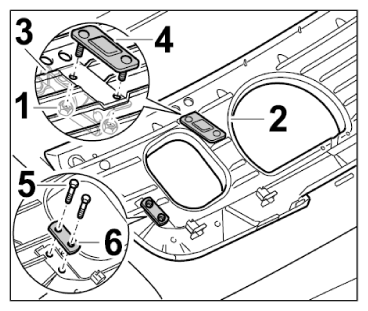

    Fig 1: Installing Lower Part Of Spoiler
    G09826996Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    Only screw on the lower part of the spoiler when the mount is fully retracted, otherwise you may hear noises when extending and retracting the spoiler or there may be warping between the lower part of the spoiler and the mount.

  2. Position plate -6-  on the lower part of the spoiler and secure with the fastening screws -5-  . → Tightening torque: 9.7 Nm (7.5 ftlb.)
