Removing Fan Motor

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnecting electric line
    1. 1.1. Release the connector -Arrow A-  and pull it off -Arrow B-  .
    2. 1.2. Take the line out of the holder -Arrow C-  .
  2. Unscrew the fastening screws -1-  and take out the fan motor -Arrow D-  .

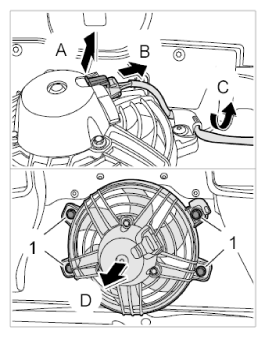

    3. Fig 1: Removing Fan Motor From Rear Lid
    G09826976Courtesy of PORSCHE CARS NORTH AMERICA, INC.
