Removing Engine For Rear Spoiler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

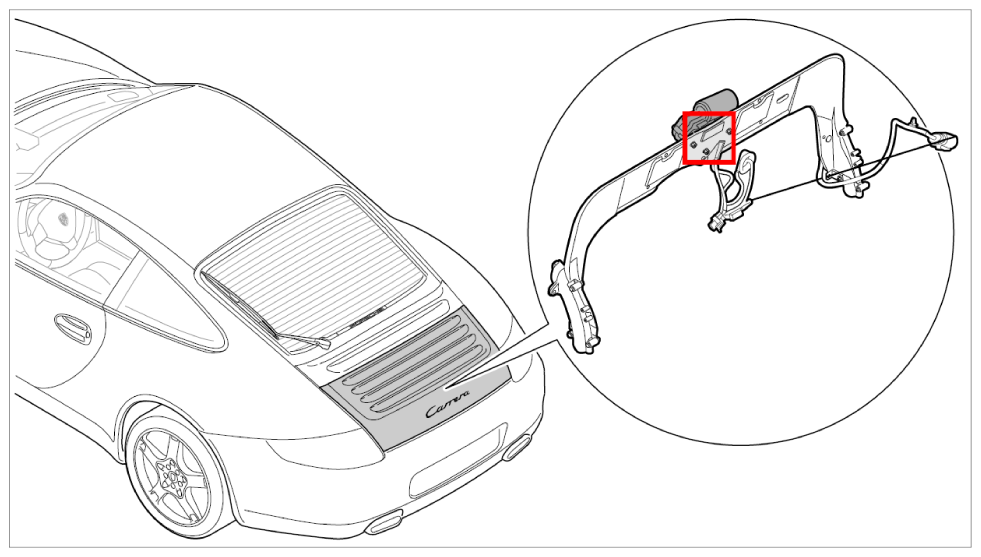

Fig 1: Identifying Spoiler Drive Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

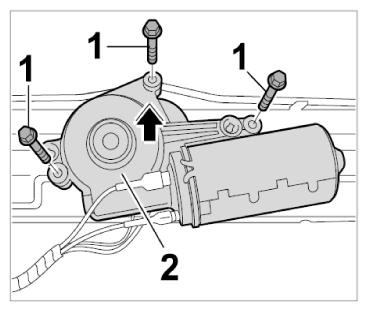

Unscrew the three fastening screws -1- on the engine for the spoiler drive -2- .

Fig 2: Removing Engine For Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take off motor for spoiler drive -2- .

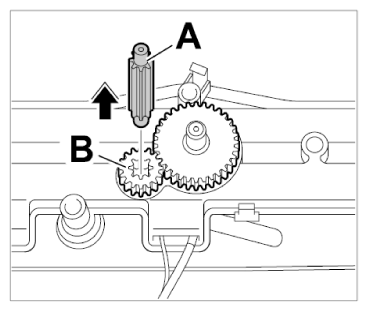

Pull out axle -A- and remove spur gear -B- .

Fig 3: Removing Spur Gear And Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
