Installing Engine For Rear Spoiler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

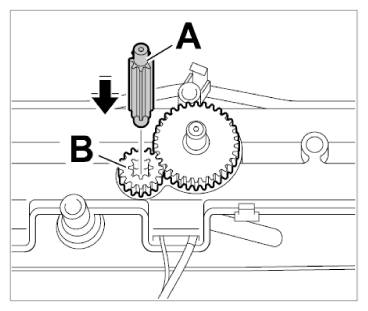

Insert spur gear -B- and push in -A- axle.

Fig 1: Installing Spur Gear And Axle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

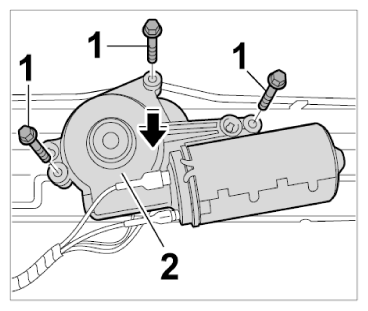

Mount engine for spoiler drive -2- , position it and screw down using the three fastening screws -1- . → Tightening torque: 6 Nm (4.5 ftlb.)

Fig 2: Installing Engine For Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
