Removing Trim Frame For Rear Of Rear Window

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove trim frame for rear of rear window.

    Information

    The clamping wedge will be irreparably damaged during removal and must be replaced.

    1. 1.1. Force out clamping wedge -2-  on the trim frame for the rear of the rear window -1-  with a plastic wedge -Arrows A-
    2. 1.2. Loosen fastening screws -3-  on trim frame for rear of rear window -1-  by two turns.
    3. 1.3. Take trim frame for rear of rear window -1-  off the rear window cover -Arrow B-  .

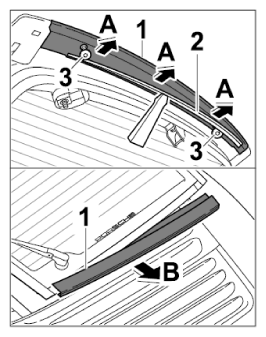

      Fig 1: Removing Trim Frame Of Rear Window
      G09826965Courtesy of PORSCHE CARS NORTH AMERICA, INC.
