Removing Rear Spoiler (With Spoiler Drive Intact)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

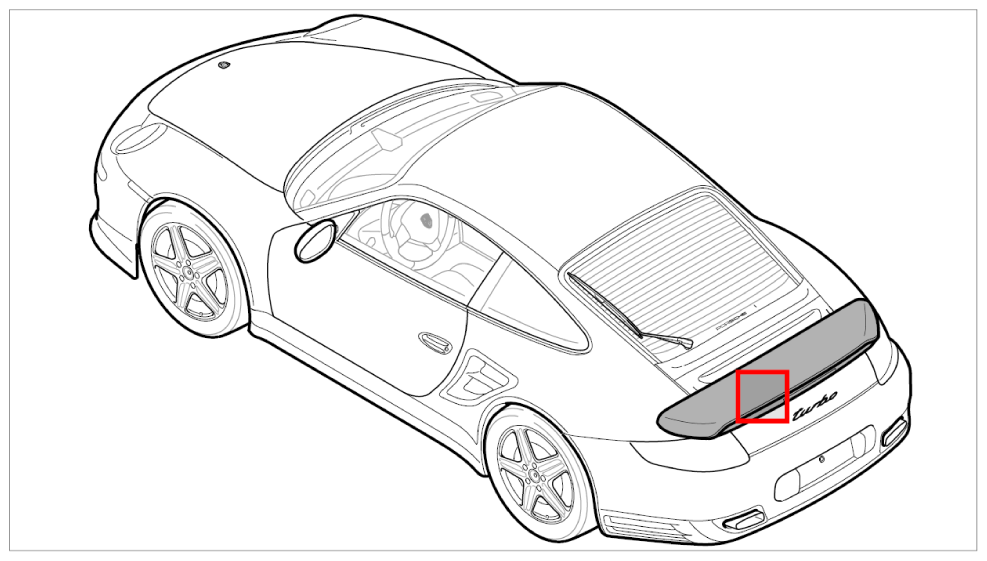

Fig 1: Identifying Rear Spoiler Position
G09826787Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Extend the rear spoiler.
    1. 1.1. Switch on ignition.
    2. 1.2. Extend rear spoiler -1-  manually using the rocker switch.

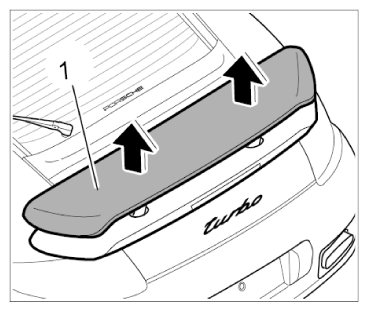

      Fig 2: Removing Rear Spoiler
      G09826788Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Place rear spoiler in service position.
    1. 2.1. P 9751  Assembly aid -2-  must be folded and inserted in the middle between the rear lid and the rear spoiler -1-  .
    2. 2.2. Assembly aid P 9751 -2-  must be pumped up carefully using the → tire-inflating device V.A.G 1225  until the gap -X-  between the rear lid and the rear spoiler is -1-  approx. 100 mm.

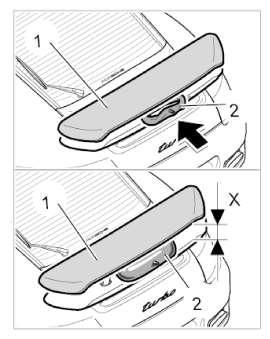

      3. Fig 3: Pulling Out Rear Spoiler
      G09826789Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Loosen rear spoiler at the left and right hydraulic cylinders.
    1. 3.1. Turn outer pipe -3-  using the socket-wrench insert P 9752 -4-  until the bore -arrow-  on the outer pipe -3-  is directly covering the bore on the mount -2-  .

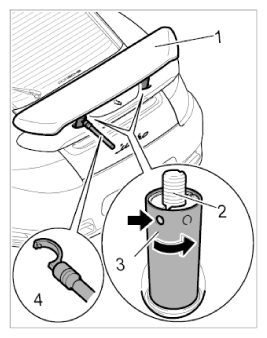

      Fig 4: Aligning Bores On Hydraulic Cylinder
      G09826790Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Socket-wrench insert P 9752 -4-  must be inserted into the bores on the outer pipe -3-  and on the mount -2-  , and the mount -2-  on both hydraulic cylinders must then be screwed out of the rear spoiler -1-  by turning it max. 5 times in a clockwise direction.

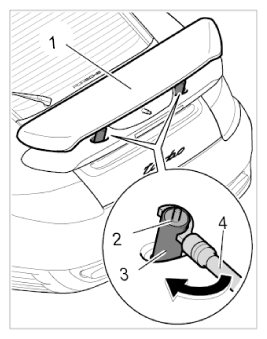

      Fig 5: Removing Hydraulic Cylinder Of Rear Spoiler
      G09826791Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Vent air from the assembly aid P 9751  slowly and remove assembly aid P 9751  from between the rear lid and rear spoiler.
    4. 3.4. Unscrew mount -2-  at both hydraulic cylinders completely out of the rear spoiler -1-  by hand and lift up the rear spoiler -1-  .

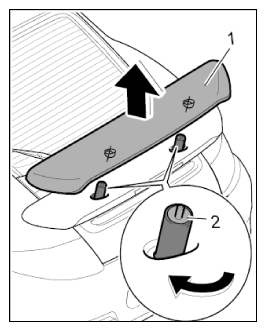

      Fig 6: Lifting Up Rear Spoiler
      G09826792Courtesy of PORSCHE CARS NORTH AMERICA, INC.


Fig 1: Identifying Rear Spoiler Position
G09826793Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Extend rear spoiler.
    1. 1.1. Switch on ignition.
    2. 1.2. Extend rear spoiler -1-  manually using the rocker switch.

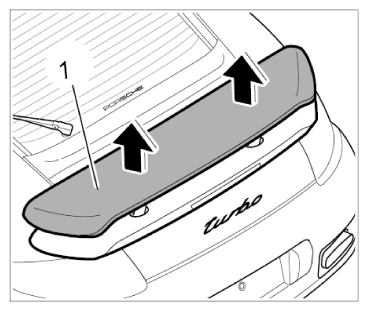

      3. Fig 2: Removing Rear Spoiler
      G09826794Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen rear spoiler at the left and right hydraulic cylinders.
    1. 2.1. Turn outer pipe -3-  using the socket-wrench insert 9752 -4-  until the bore -arrow-  on the outer pipe -3-  is directly covering the bore on the mount -2-  .
      Fig 3: Aligning Bores On Hydraulic Cylinder
      G09826795Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 2.2. Socket-wrench insert 9752 -4-  must be inserted into the bores on the outer pipe -3-  and on the mount -2-  , and the mount -2-  on both hydraulic cylinders must then be screwed out of the rear spoiler -1-  by turning it max. 5 times in a clockwise direction.
      Fig 4: Removing Hydraulic Cylinder Of Rear Spoiler
      G09826796Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 2.3. Unscrew mount -2-  at both hydraulic cylinders completely out of the rear spoiler -1-  by hand and lift up the rear spoiler -1-  .

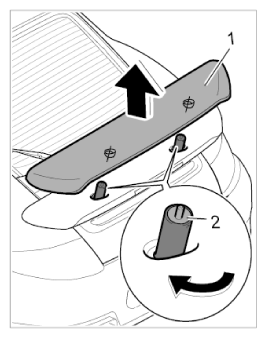

      Fig 5: Lifting Up Rear Spoiler
      G09826797Courtesy of PORSCHE CARS NORTH AMERICA, INC.


Fig 1: Identifying Rear Spoiler Position
G09826938Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Extend the rear spoiler.
    1. 1.1. Switch on ignition.
    2. 1.2. Extend rear spoiler -1-  manually using the rocker switch.
      3. Fig 2: Removing Rear Spoiler
      G09826939Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Place rear spoiler in service position.
    Fig 3: Pulling Out Rear Spoiler
    G09826940Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    1. 2.1. P 9751 Assembly aid -2-  must be folded and inserted in the middle between the rear lid and the rear spoiler -1-  .
    2. 2.2. Assembly aid P 9751 -2-  must be pumped up carefully using the → tire-inflating device V.A.G 1225  until the gap -X-  between the rear lid and the rear spoiler is -1-  approx. 100 mm.
  3. Loosen rear spoiler at the left and right hydraulic cylinders.
    1. 3.1. Turn outer pipe -3-  using the socket-wrench insert P 9752 -4-  until the bore -arrow-  on the outer pipe -3-  is directly covering the bore on the mount -2-  .

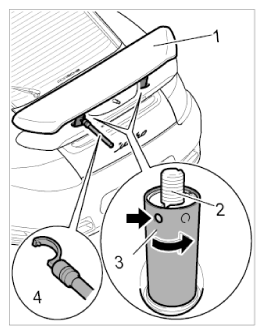

      Fig 4: Aligning Bores On Hydraulic Cylinder
      G09826941Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 3.2. Socket-wrench insert P 9752 -4-  must be inserted into the bores on the outer pipe -3-  and on the mount -2-  , and the mount -2-  on both hydraulic cylinders must then be screwed out of the rear spoiler -1-  by turning it max. 5 times in a clockwise direction.
      Fig 5: Removing Hydraulic Cylinder Of Rear Spoiler
      G09826942Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    3. 3.3. Vent air from the assembly aid P 9751  slowly and remove assembly aid P 9751  from between the rear lid and rear spoiler.
    4. 3.4. Unscrew mount -2-  at both hydraulic cylinders completely out of the rear spoiler -1-  by hand and lift up the rear spoiler -1-  .
      Fig 6: Lifting Up Rear Spoiler
      G09826943Courtesy of PORSCHE CARS NORTH AMERICA, INC.
