Installing Rear Spoiler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

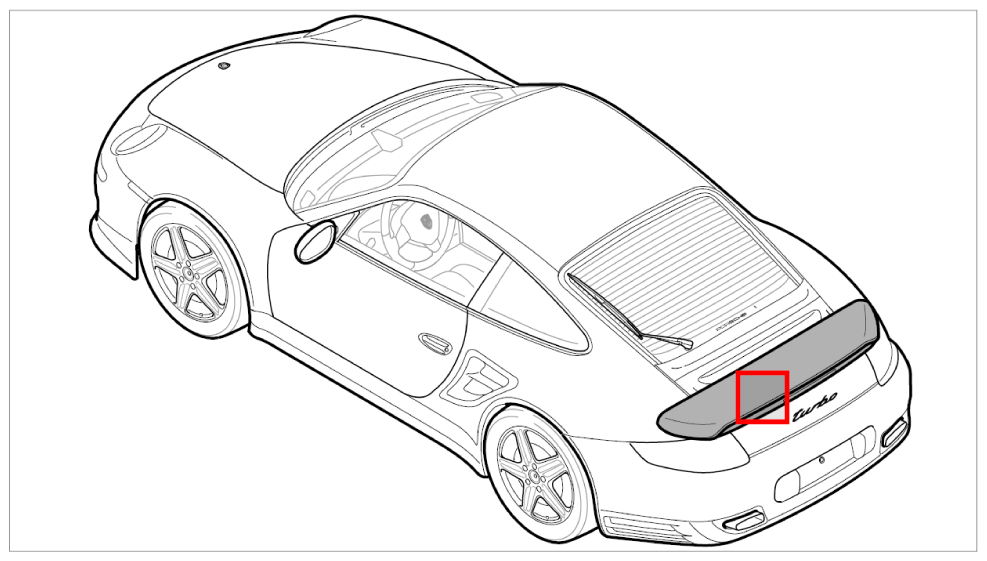

Fig 1: Identifying Rear Spoiler Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position rear spoiler on the left and right hydraulic cylinders.
Information

Apply Loctite 243 screw-locking compound to the first thread of the hydraulic cylinders.
1. 1.1. Position rear spoiler -1- on the left and right hydraulic cylinders.
  Fit the two mounts -2- to the rear spoiler -1- by hand by screwing them in by at least 3 turns.

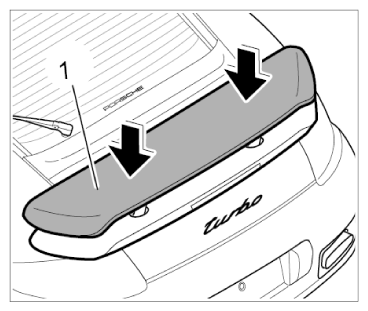

  Fig 2: Placing Rear Spoiler Onto Hydraulic Cylinders
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure rear spoiler at the left and right hydraulic cylinders.
1. 2.1. Socket-wrench insert 9752 -4- must be inserted into the bores on the outer pipe -3- and on the mount -2- , and the mount -2- on both hydraulic cylinders must then be screwed into the rear spoiler -1- completely and tightened. → Tightening torque: 30 Nm (22 ftlb.)+5 Nm (+3.5 ftlb.)

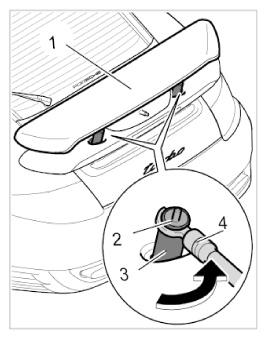

  Fig 3: Securing Rear Spoiler At Left And Right Hydraulic Cylinders
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Turn outer pipe -3- using the socket-wrench insert 9752 -4- until the bore on the mount -2- is directly covered by the outer pipe -3- . The bore on the outer pipe -3- must point towards the rear in the direction of travel.

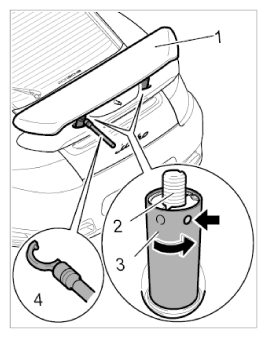

  Fig 4: Turning Outer Pipe
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Retract rear spoiler.
1. 3.1. Switch on ignition.
2. 3.2. Retract rear spoiler -1- manually using the rocker switch.
