Installing Air Inlet Grille

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

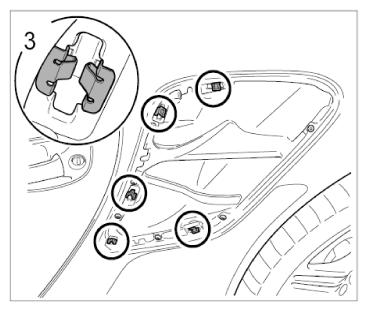

Check the retaining clips -3- on the installation frame for the air inlet grille and replace them if necessary.

Fig 1: Identifying Retaining Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the retaining clips -2- on the air inlet grille -1- and replace them if necessary.

Fig 2: Inserting Air Inlet Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

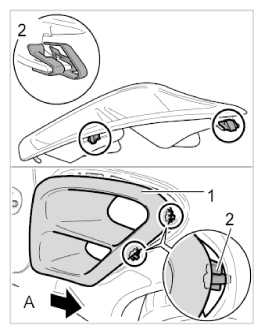

Insert rear top corner of the air inlet grille -1- into the installation frame and push it in -Arrow A- until the retaining clips -2- engage.

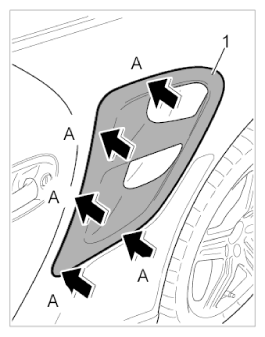

Press the air inlet grille -1- in at the top, bottom and front ↓-Arrow A- until the clips engage.

Fig 3: Clipping In Air Inlet Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check the retaining clips -3- on the installation frame for the air inlet grille and replace them if necessary.

Fig 1: Checking Retaining Clips On Frame For Air Inlet Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check the retaining clips -2- on the air inlet grille -1- and replace them if necessary.

Fig 2: Inserting Air Inlet Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert rear top corner of the air inlet grille -1- into the installation frame and push it in -Arrow A- until the retaining clips -2- engage.
Press the air inlet grille -1- in at the top, bottom and front -Arrow A- until the clips engage.

Fig 3: Clipping In Air Inlet Grille
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
