Sticking On "25 Years Porsche Exclusive" Logo

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean the painted surface (of the vehicle) by washing it with a non-lubricating cleaning agent.
  2. Immediately before you stick on the decorative film, wash off the areas on which you intend to stick the logo using spirits or alcohol to ensure that all traces of silicon, grease and oil are completely removed.
  3. Pull off protective film and position and stick on logo at -dimension A = 298 mm-  and -dimension B = 44 mm-  .

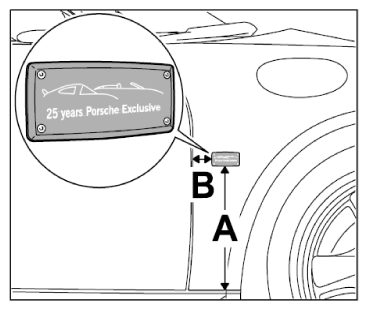

    Fig 1: Sticking On Logo Dimension
    G09826908Courtesy of PORSCHE CARS NORTH AMERICA, INC.
