Installing Roof Joint Cover Strip

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

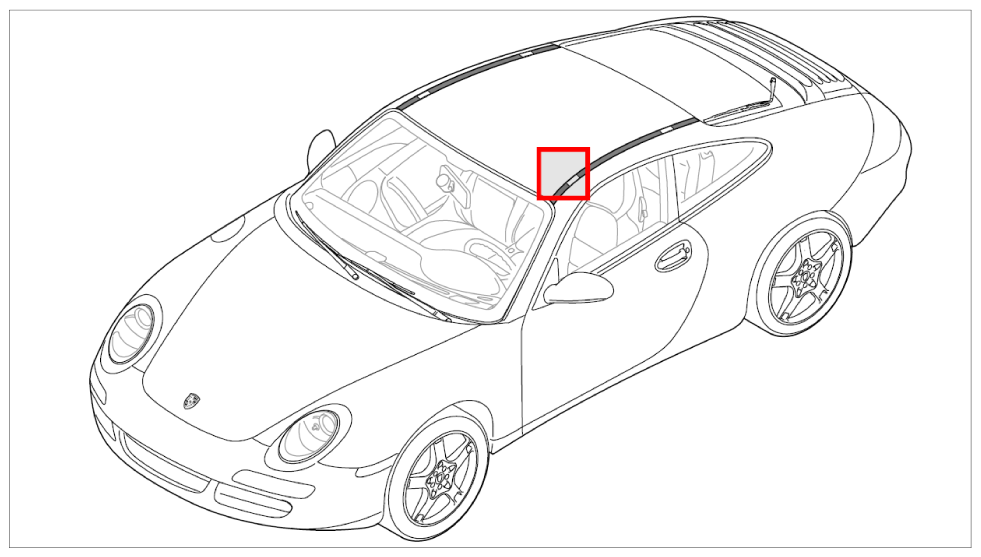

Fig 1: Identifying Roof Joint Cover Strip Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position spreaders -1- (5 per roof channel) in the recesses, beginning at the front. Press the spreader right down into the roof channel.

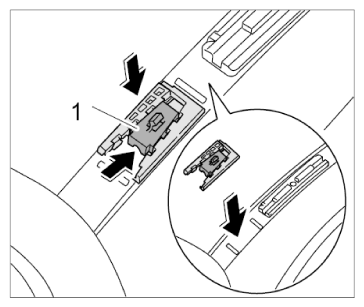

Fig 2: Fitting Spreader
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push wedge piece into the spreader -1- until the spreader is braced in the roof channel.
Position the roof joint strip -1- on the roof channel, and align the roof joint clips -2- in the roof joint cover strip with the spreaders -3- so that they lie directly above one another.

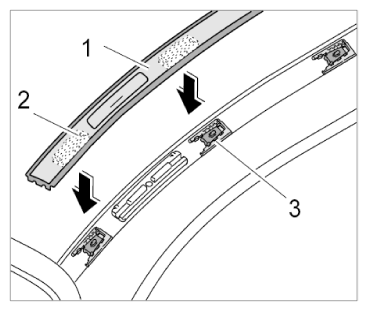

Fig 3: Installing Roof Joint Cover Strip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press in roof joint cover strip -1- until it audibly engages.
