Assembling Roof Joint Cover Strip

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

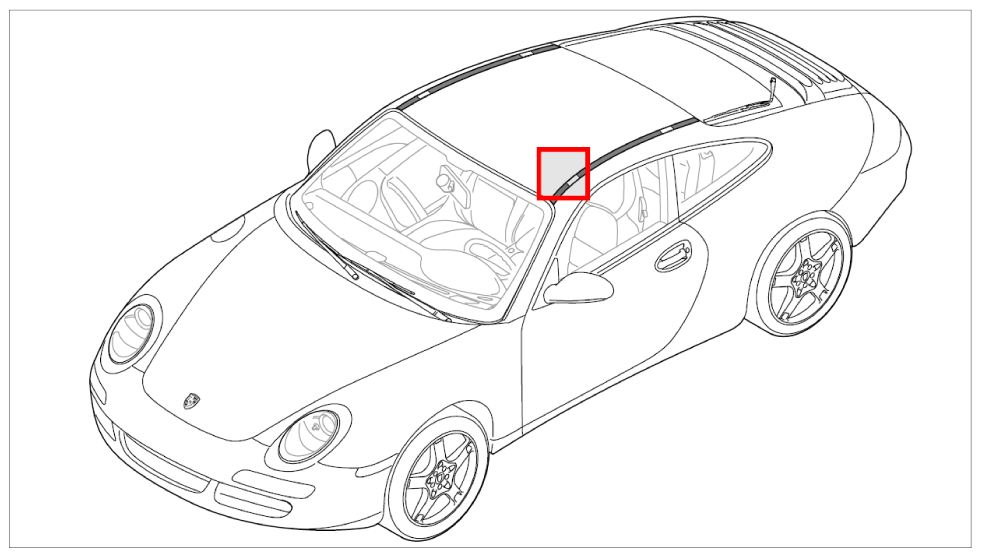

Fig 1: Identifying Roof Joint Cover Strip Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert roof joint clips -1- narrow side first, and press in until the locking tab in the roof joint cover strip -2- engages.

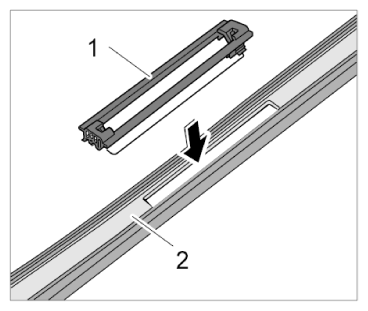

Fig 2: Fitting Roof Joint Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push the roof joint seal -1- onto the roof joint strip -2- all the way round.

Fig 3: Fitting Roof Joint Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

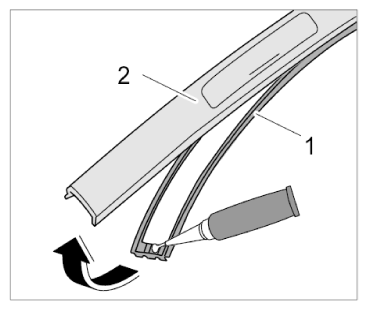

Stick in the roof frame seal -1- at the ends of the roof joint cover strip -2- using Loctite 241 WE .
Position the fold-out element -1- in the cut-out of the roof joint strip -2- , and press in the locking tabs at the ends until they engage.

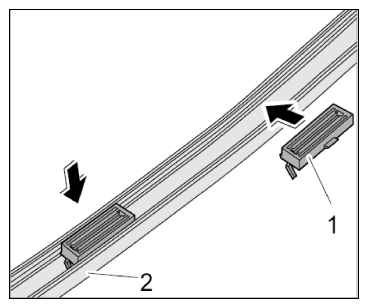

Fig 4: Fitting Fold-Out Element
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
