Removing Sill Cover: Notes

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

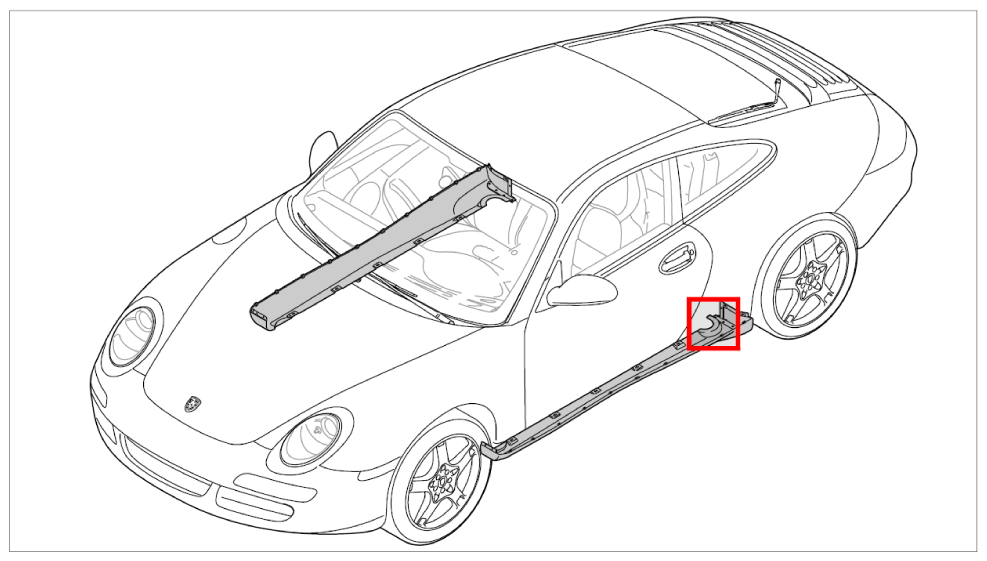

Fig 1: Identifying Sill Cover Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

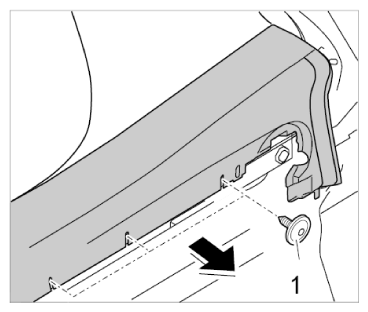

Unscrew fastening screw -1- from the vehicle underbody.

Fig 2: Loosening Sill Cover At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

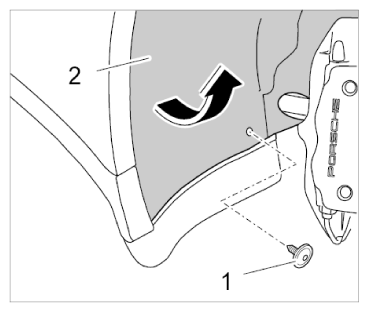

Unscrew fastening screw -1- from rear wheel housing liner -2- and pull out the wheel housing liner slightly.

Fig 3: Releasing Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

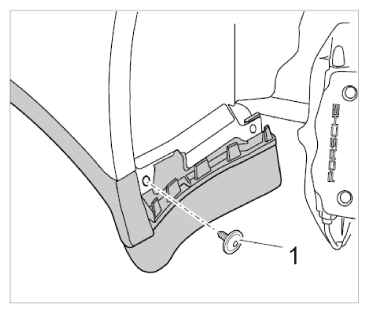

Unscrew fastening screw -1- .

Fig 4: Loosening Rear Sill Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

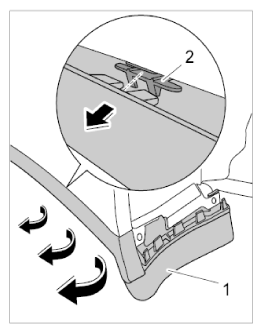

Pull out sill cover -1- , beginning at the rear, from the fixing clips -2- .

Fig 5: Removing Sill Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

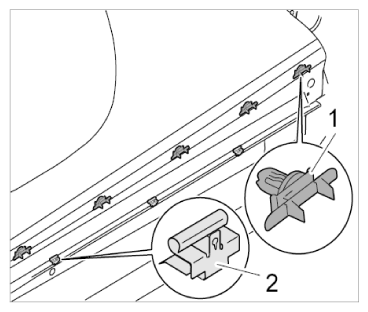

Check fastening clips -1- , and replace if necessary.
Check clamps -2- on the vehicle underbody, and replace if necessary.

Fig 6: Checking Fixing Clips And Clamps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
