Disassembling And Assembling Door Entry Guard

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disassemble door entry guard.
    1. 1.1. Press out fastening nuts -1-  .
    2. 1.2. Insert a screwdriver between the rubber lip -2-  and door entry guard -3-  and pull off rubber strap -arrows-  .

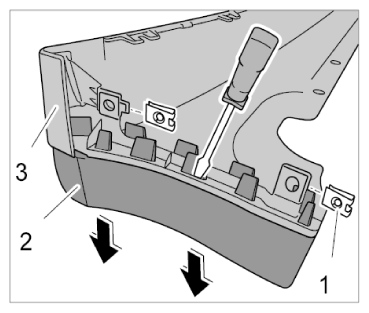

      Fig 1: Pulling Off Rubber Strap
      G09826826Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Assemble door entry guard.
    1. 2.1. Position rubber lip -2-  and pull the rubber straps through the door entry guard -3-  (-arrows-  ).
    2. 2.2. Press in fastening nuts -1-  .

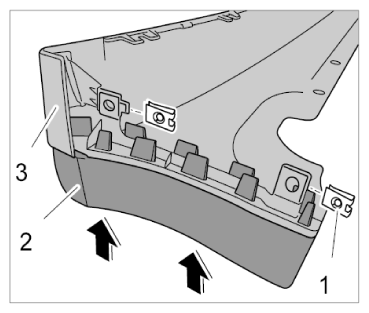

      Fig 2: Positioning Rubber Lip
      G09826827Courtesy of PORSCHE CARS NORTH AMERICA, INC.
