Installing Sill Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

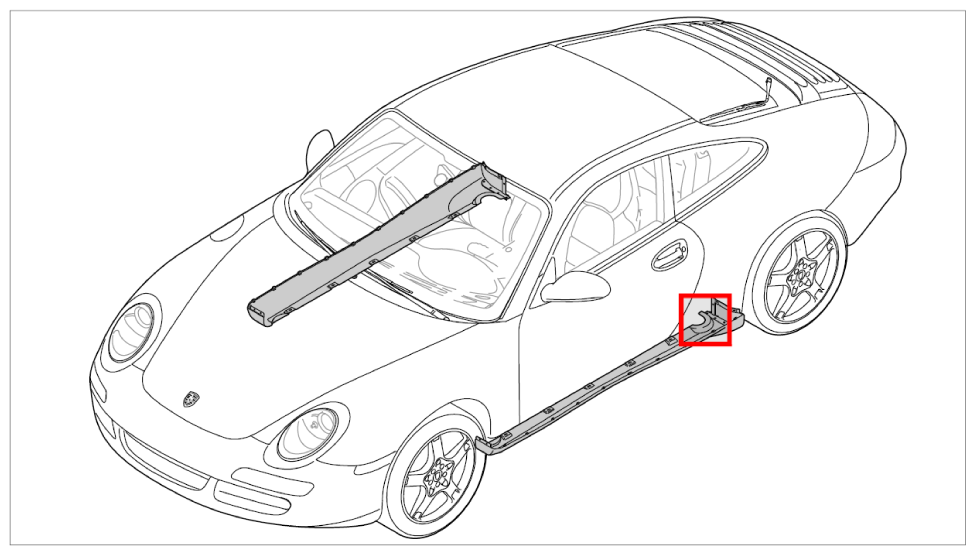

Fig 1: Identifying Sill Cover Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

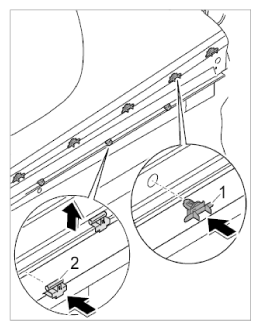

Align clamps (six per side) -2- on the vehicle underbody with the sill cover and press in onto the edge of the door sill.
Press in fixing clips (nine per side) -1- until they engage.
Information
- When inserting the sill cover, make sure the overlap is correct.
- Engage hook on front sill cover with side panel.

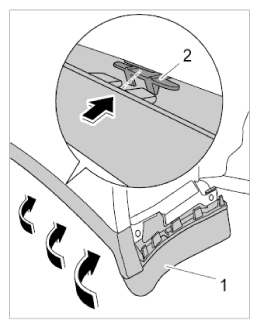

With the help of a second person, insert sill cover -1- , beginning at the rear, and press into the fixing clips -2- .

Fig 3: Installing Sill Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

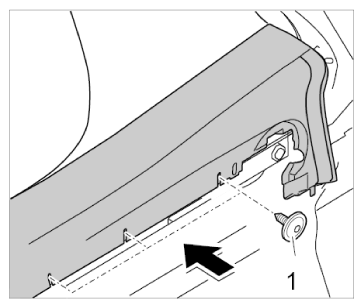

Tighten sill cover with the fastening screws -1- in the clamps on the vehicle underbody. → Tightening torque: 2 Nm (1.5 ftlb.) +/-20 %

Fig 4: Installing Fastening Screws Of Sill Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Tighten fastening screw -1- . → Tightening torque: 2 Nm (1.5 ftlb.) +/-20 %

Fig 5: Identifying Fastening Screw Of Rear Sill Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

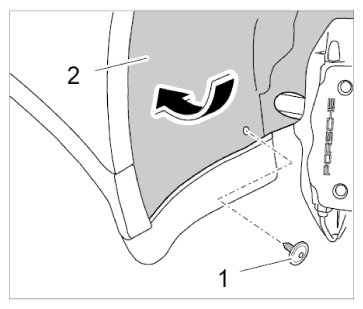

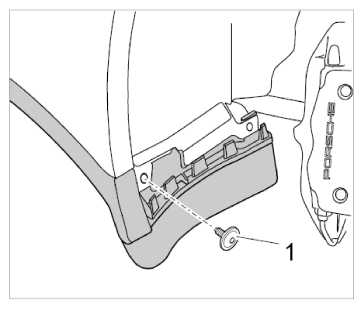

Align rear wheel housing liner -2- and tighten with the fastening screw -1- . → Tightening torque: 2 Nm (1.5 ftlb.) +/-20 %

Fig 6: Aligning Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check gap dimensions of sill cover, and adjust if necessary. → Gap Dimensions Of Sill Cover
