Removing Door Entry Guard

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

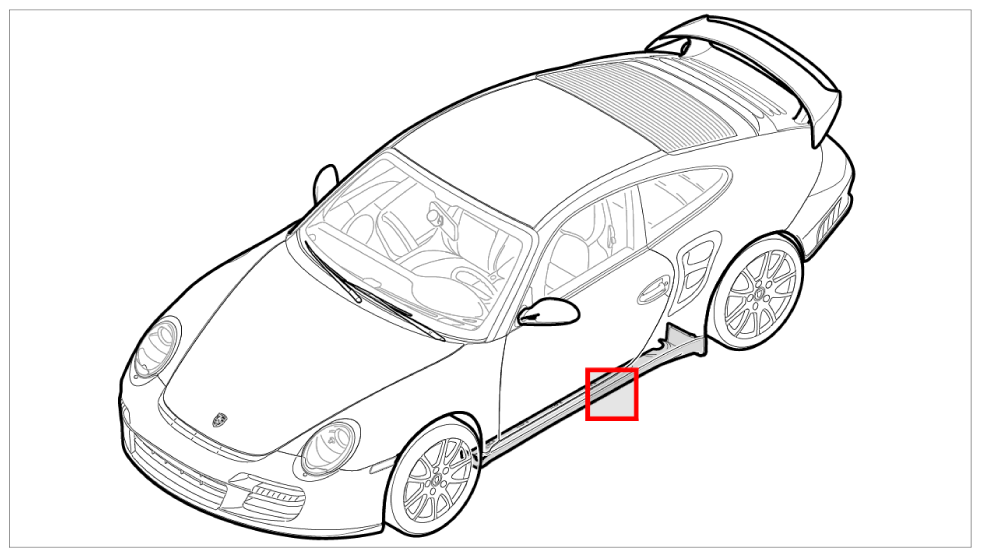

Fig 1: Identifying Door Entry Guard Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

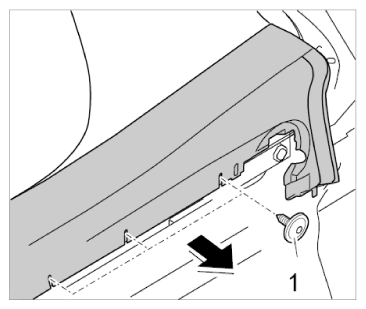

Unscrew fastening screw -1- on the underside of the vehicle -arrow- .

Fig 2: Loosening Door Entry Guard At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

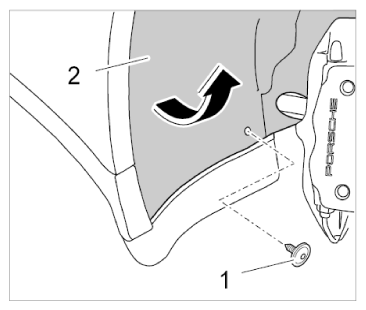

Unscrew fastening screw -1- at the rear wheel housing liner -2- and pull wheel housing liner out slightly -arrow- .

Fig 3: Loosening Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

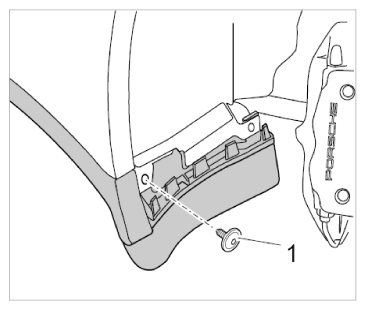

Unscrew fastening screw -1- .

Fig 4: Loosening Door Entry Guard At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

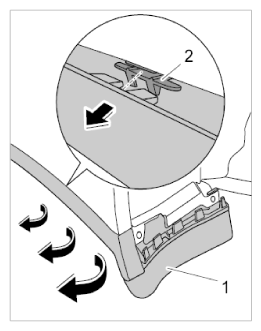

Pull door entry guard -1- out of the fixing clips -2- , starting from the rear -arrows- .

Fig 5: Removing Door Entry Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

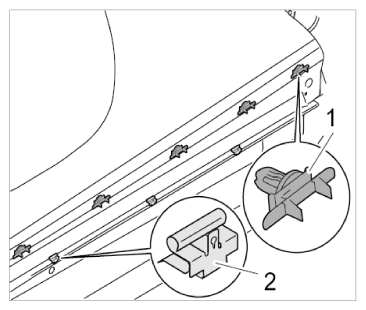

Check fixing clips -1- and replace them if necessary.
Check fastening clamps -2- at the underside of the vehicle and replace them if necessary.

Fig 6: Checking Fixing Clips And Clamps

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
