Installing Door Entry Guard

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

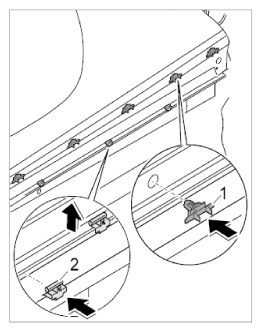

Align the fastening clamps (6 on each side) -2- on the underside of the vehicle with the door entry guard and press them onto the rim of the door sill -arrows- .
Press in fixing clips (9 on each side) -1- until they engage securely -arrow- .

Fig 1: Installing Clamps And Fixing Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- When inserting the sill cover, make sure the overlap is correct.
- Engage hook on front sill cover with side panel.

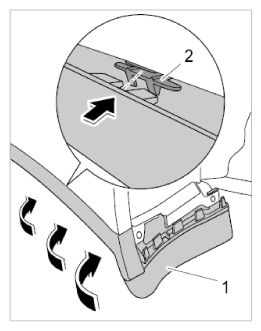

Insert the door entry guard -1- starting from the rear with the help of another person and press it into the fixing clips -2- (-arrows- ).

Fig 2: Installing Door Entry Guard
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

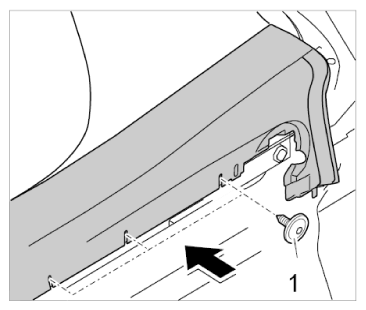

Use the fastening screws -1- on the underside of the vehicle to secure the door entry guard in the fastening clamps -arrow- . → Tightening torque: 2 Nm (1.5 ftlb.)+/-20 %

Fig 3: Securing Door Entry Guard At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

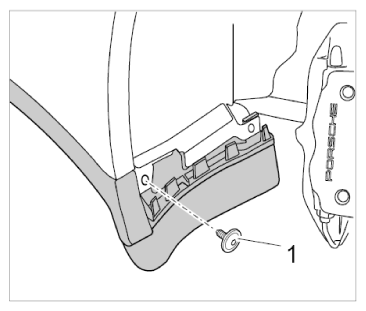

Tighten fastening screw -1- . → Tightening torque: 2 Nm (1.5 ftlb.)+/-20 %

Fig 4: Securing Door Entry Guard At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

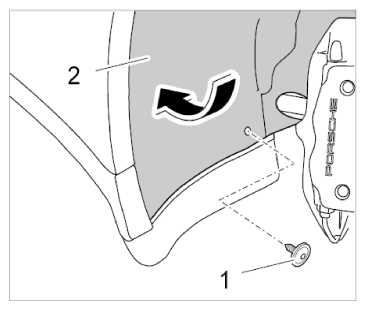

Align rear wheel housing liner -2- (-arrow- ) and secure in place with the fastening screw -1- . → Tightening torque: 2 Nm (1.5 ftlb.)+/-20 %

Fig 5: Securing Rear Wheel Housing Liner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Check gap dimensions of door entry guard and adjust if necessary. → Gap Dimensions Of Door Entry Guard
