Gap Dimensions Of Sill Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

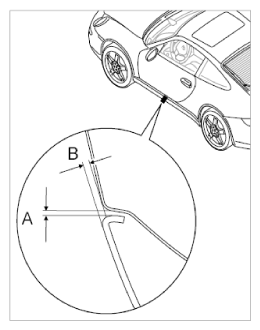

Fig 1: Identifying Gap Dimensions Of Sill Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Sill cover to door sill		Gap dimension A	1.3 mm	+0.5 mm
Sill cover to door sill	Door sill only lowered	Gap dimension B	2 mm	-1 mm

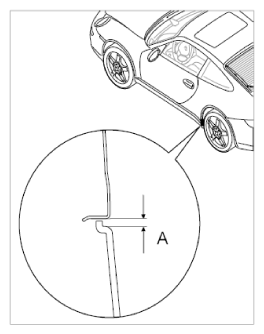

Fig 2: Identifying Gap Dimensions Rear Wheel Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Sill cover to door sill rear in wheel housing		Gap dimension A	1.3 mm	+0.5 mm

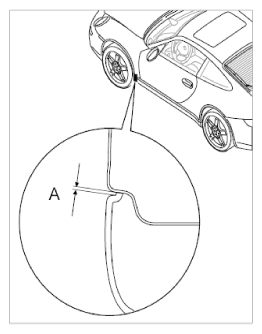

Fig 3: Identifying Gap Dimensions Front Wheel Housing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Sill cover to door sill at front in wheel housing		Gap dimension A	1.1 mm
