Installing Front Logo

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

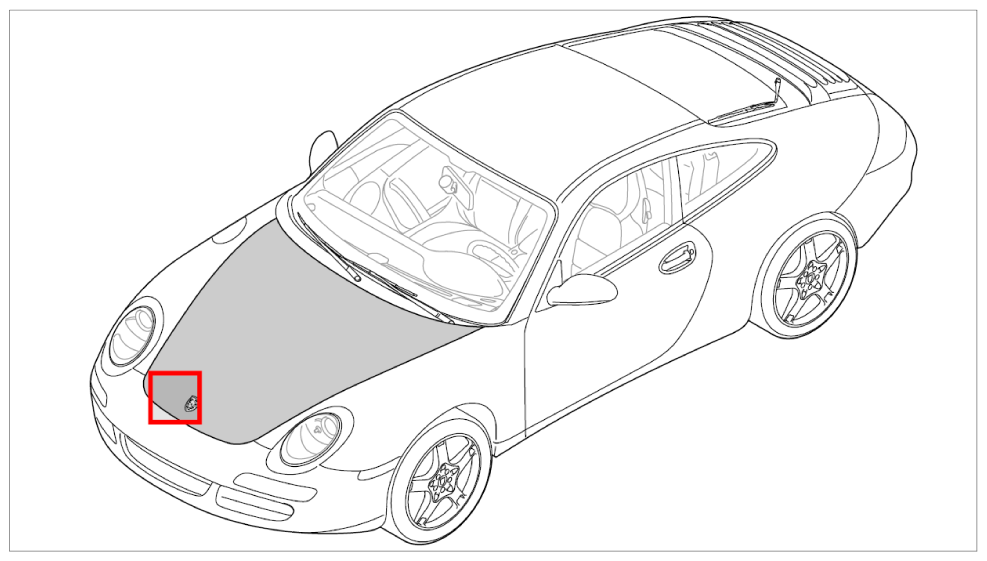

Fig 1: Overview Of Front Lid

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert washer -2- and logo -1- into lid and secure with new fastening nuts -3- .

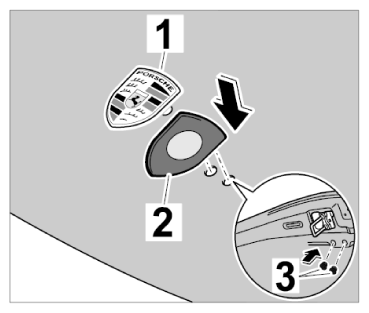

Fig 2: Installing Front Logo
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close front lid.
