Removing Centre Air Grille

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert a screwdriver between the front apron -2-  and air grille -1-  and release the locking lugs.
  2. Disengage wire harness -3-  from the air grille -1-  and remove air grille -1-  (-arrow-  ).

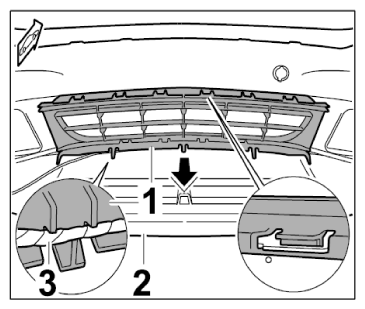

    3. Fig 1: Removing Center Air Grille
    G09826752Courtesy of PORSCHE CARS NORTH AMERICA, INC.
