Removing Accelerator Pedal: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

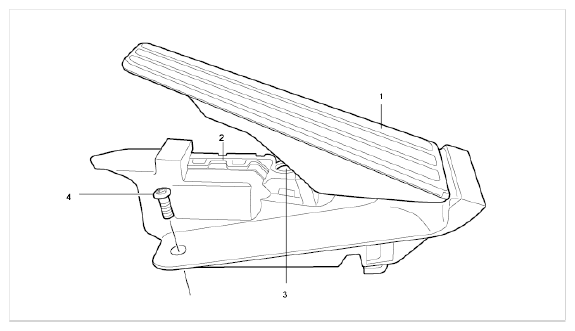

Fig 1: Overview Of Accelerator Pedal
G09828284Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Loosen accelerator pedal.

    Remove screw -4-  .

  2. Remove accelerator pedal.

    Pull accelerator pedal forward slightly and remove it in an upward direction.

  3. Pull electric connector off the accelerator pedal.

    Press locking mechanism (see -arrow-  ) down as far as the locking point and pull off electric connector -2-  .

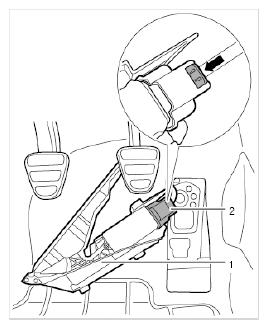

    Fig 2: Pulling Off Electric Connector
    G09828285Courtesy of PORSCHE CARS NORTH AMERICA, INC.
