Installing Accelerator Pedal: Installing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect accelerator pedal.

    Slide electric connector -2-  back onto the accelerator pedal as far as the locking point until the locking mechanism -1-  releases and locks the connector -2-  in position again.

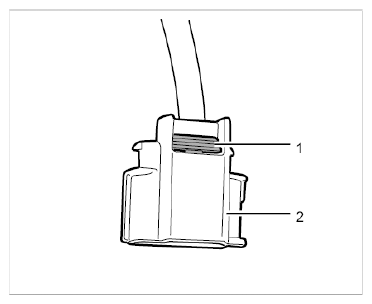

    Fig 1: Identifying Electric Connector For Accelerator Pedal
    G09828286Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Insert and secure the accelerator pedal. Use correct tightening torque!
