Removing Control Unit For Fuel Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

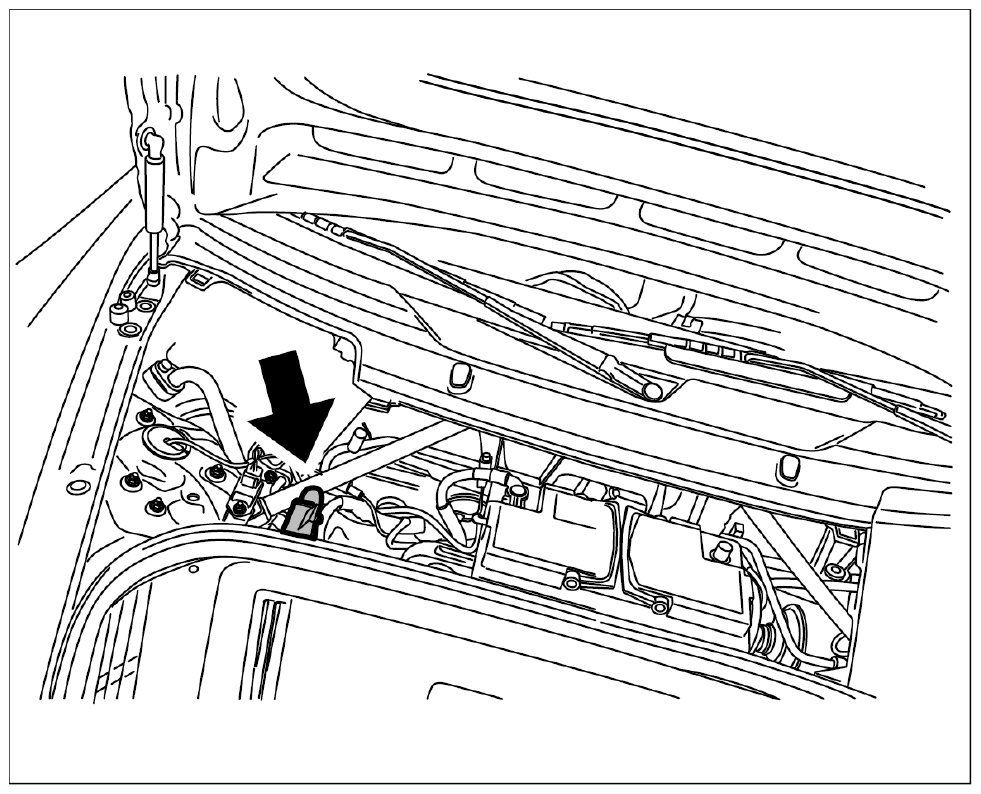

Fig 1: Identifying Control Unit For Fuel Pump Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The fuel pump control unit is replaced together with the holder.

Unscrew the two fastening nuts -1- , used to secure the holder for the fuel pump control unit, on the bulkhead.

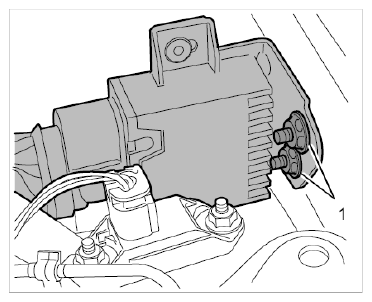

Fig 2: Securing Holder For Fuel Pump Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unlock electric plug connection -a- and remove the fuel pump control unit together with the holder.

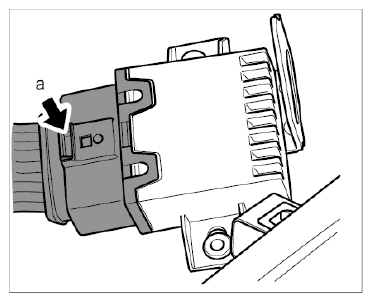

Fig 3: Disconnecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
