Installing Control Unit For Fuel Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Information

The fuel pump control unit is replaced together with the holder.

Connect electric plug connection to the fuel pump control unit until the connector engages securely.

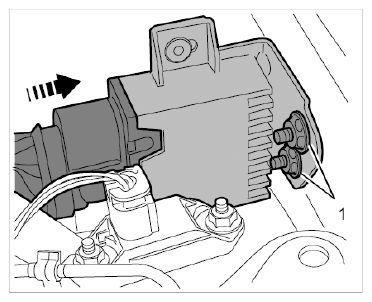

Fig 1: Connecting Electric Plug Connection To Fuel Pump Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Slide the holder with the fuel pump control unit onto the studs on the bulkhead.
Secure the holder and fuel pump control unit using the two fastening screws -1- .
