Installing Fuel Cooler

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Position fuel cooler -1- and screw in screw -3- for holding clamp only slightly.

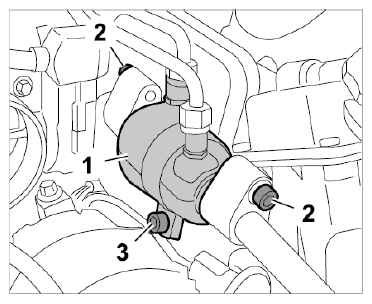

Fig 1: Connecting Air-Conditioning Lines At Fuel Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Insert new sealing rings for refrigerant lines.
2. 1.2. Connect refrigerant lines at the fuel cooler. Insert screws for refrigerant lines -2- and tighten.
  → Tightening torque: 23 Nm (17 ftlb.)

  Information

  Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.

  Information

  Do not put too much pressure on pipe and line connections. High pressure causes damage and leaks. Always counter at the lines when loosening and fastening them.
Connect fuel lines at the fuel cooler.

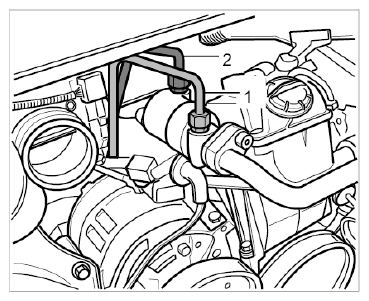

Fig 2: Identifying Fuel Line Connections At Fuel Cooler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Tighten union nuts (a/f 17) for fuel lines -1 and 2- at the fuel cooler. Always counter with an open-ended wrench (a/f 14) while doing this.
  → Tightening torque: 25 Nm (19 ftlb.)
2. 2.2. Tighten screw for fuel cooler clamp -3- .
  → Tightening torque: 23 Nm (17 ftlb.)

  Fig 3: Connecting Air-Conditioning Lines At Fuel Cooler
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fill in refrigerant → 8700AW SAFETY REGULATIONS FOR WORKING ON AIR-CONDITIONED VEHICLES AND DEALING WITH REFRIGERANT R134A .
→ 87031700 DRAINING AND FILLING IN REFRIGERANT

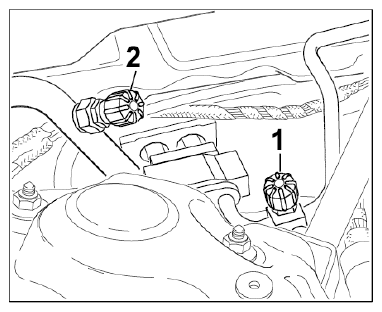

The connections for the air conditioning -1, 2- are located in the luggage compartment.

Fig 4: Identifying Connections For Air Conditioning
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
