WM 206819 Removing And Installing Fuel Cooler (Turbo Coupe, Turbo CABRIO & Gt2): Information: Overview

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

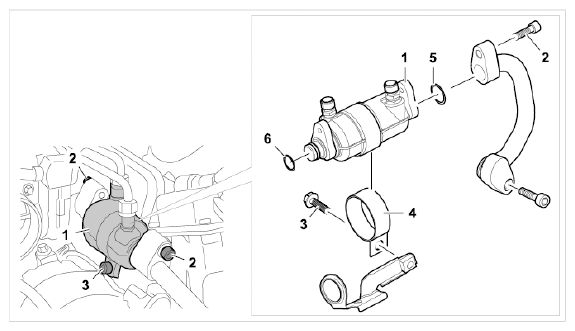

Fig 1: Overview Of Fuel Cooler
G09828271Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Fuel cooler
  2. Screws
  3. Screw
  4. Clamp
  5. Sealing ring
  6. Sealing ring
