Subsequent Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install fuel level sensor.
→ WM 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR (TURBO COUPE, TURBO S COUPE, TURBO CABRIO & TURBO S CABRIO) - section on "Installing"
Fill fuel that was removed back into the fuel tank.
→ 200317 DRAINING AND FILLING FUEL - section on "Filling".
Install cover for access to the fuel level sensor. Fit and tighten four M6 nuts -2- .
→ Tightening torque: 10 Nm (7.5 ftlb.) .

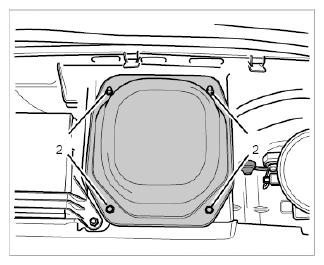

Fig 1: Identifying Cover For Access To Fuel Level Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Install luggage compartment cover.
→ 700519 REMOVING AND INSTALLING TRIM PANEL FOR FRONT LUGGAGE COMPARTMENT - section on "Installing".
Connect the battery.
→ 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
Carry out a function test and check the system for leaks.
Remove protective covers from the vehicle.
