Removing Fuel Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

The installation position specifications (right/left) refer to the direction of travel.

Expose the fuel pump.

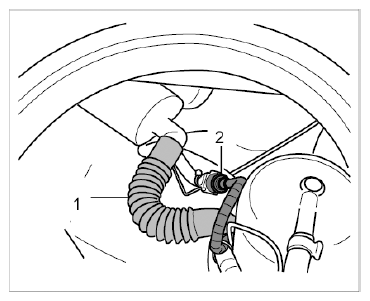

Fig 1: Identifying Connections For Right Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Pull off flexible breather hose for the filler neck (blue) -1- and plug-in coupling for the fuel line -2- at the right.
2. 1.2. Disconnect the plug-in coupling for the fuel line on the fuel pump -1- at the left and pull off the line.

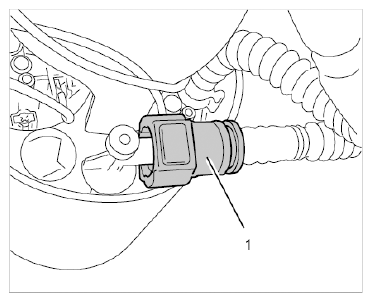

  Fig 2: Identifying Connection For Left Fuel Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the fuel pump.

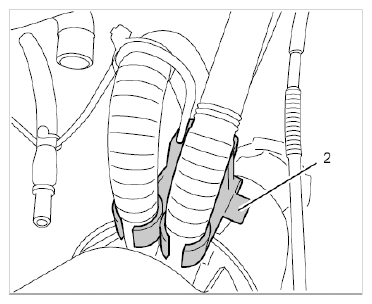

Fig 3: Identifying Connection For Sucking Jet Pumps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Turn the fuel pump anti-clockwise (bayonet lock) and tilt slightly forward in direction of travel.
  Observe installation position of fuel pump!
2. 2.2. Release and pull off connection for the left and right sucking jet pump at the fuel pump -2- .
3. 2.3. Carefully lift the fuel pump up out of the fuel tank.
