Preliminary Work

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Place protective covers on the vehicle to avoid damaging the vehicle.
Disconnect the battery.
→ 2706IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY .
Remove luggage compartment cover.
→ 700519 REMOVING AND INSTALLING TRIM PANEL FOR FRONT LUGGAGE COMPARTMENT - section on "Removing".

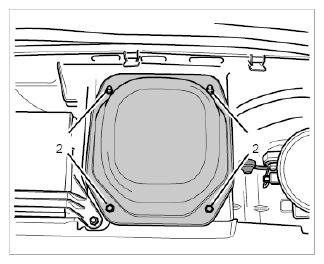

Remove cover for access to the fuel level sensor.
1. 4.1. Screw off four M6 nuts -2- and remove the cover.
2. 4.2. Check seal and replace it if necessary.

  Fig 1: Identifying Cover For Access To Fuel Level Sensor
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Highly inflammable or explosive materials
- Danger of fire or explosion
→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

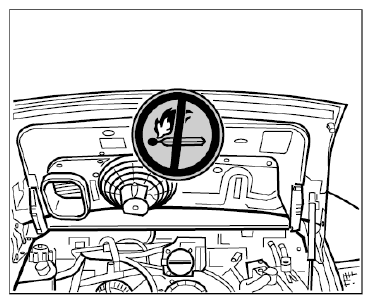

Display a warning sign in a clearly visible position in the work area or attach it to the vehicle.

Fig 2: Example Of Warning Sign
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove fuel level sensor.
→ WM 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR (TURBO COUPE, TURBO S COUPE, TURBO CABRIO & TURBO S CABRIO) - section on "Removing"
Drain the fuel tank until the fuel level is lower than the fuel pump.
→ 200317 DRAINING AND FILLING FUEL - section on "Draining".
