Installing Fuel Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Highly inflammable or explosive materials

Danger of fire or explosion

→ Avoid contact with hot parts or sources of ignition.

→ Use suction to remove ignitable vapors.

→ Attach warning sign in a clearly visible position.

Information

The installation position specifications (right/left) refer to the direction of travel.

Install fuel pump.
1. 1.1. Guide the fuel pump into the fuel tank and set it down on the floor of the tank in order to connect the sucking jet pumps.
2. 1.2. Fit and engage connection for the left and right sucking jet pump at the fuel pump -2- .

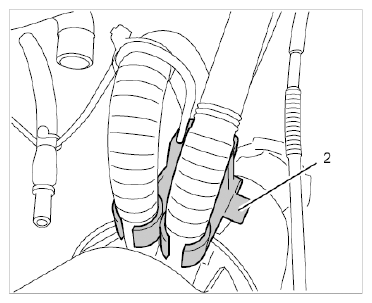

  Fig 1: Identifying Connection For Sucking Jet Pumps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Insert the fuel pump into the mounting (bayonet lock) and turn it clockwise as far as it will go.
  Observe installation position of fuel pump!
4. 1.4. Connect plug-in coupling for the fuel line (blue) -1- to the fuel pump at the left.
  The plug-in coupling must lock with an audible click.

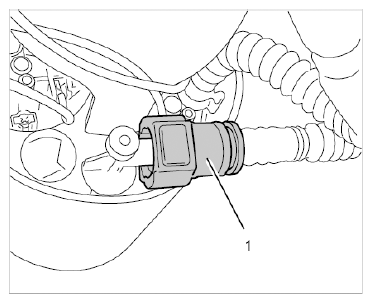

  Fig 2: Identifying Connection For Left Fuel Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect flexible breather hose for the filler neck (blue) -1- and plug-in coupling for the fuel line -2- at the right.
The plug-in coupling must lock with an audible click.

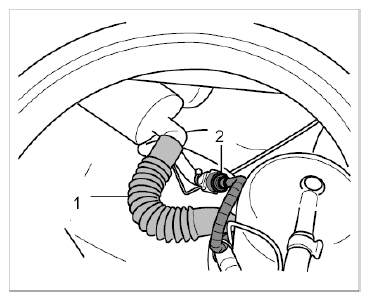

Fig 3: Identifying Connections For Right Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
