Removing Fuel Pump - Carrera 4

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the fuel pump.

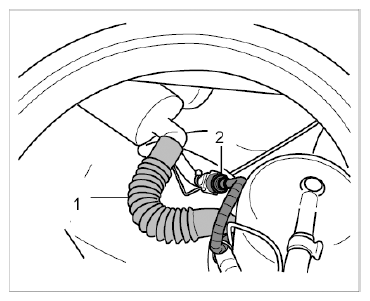

Fig 1: Identifying Connections For Left Fuel Pump
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Pull off flexible breather hose for the filler neck -1- and plug connection for the fuel line -2- on the left.
2. 1.2. Loosen plug connection for the fuel line at the fuel pump -1- on the right and pull off the line.

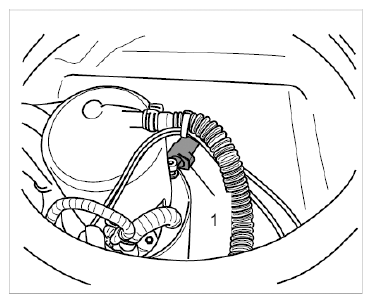

  Fig 2: Identifying Connection For Fuel Line On Right
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the fuel pump.
1. 2.1. Turn the fuel pump anti-clockwise (bayonet lock, note installation position!) and tip it slightly towards the front end.
2. 2.2. Pull the retaining claws on the left and right sucking jet pump at the fuel pump -in direction of arrow- .

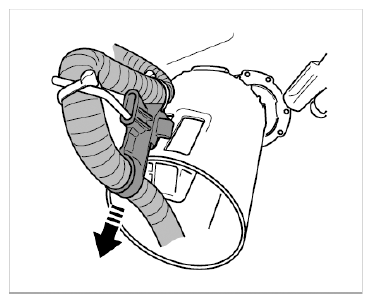

  Fig 3: Removing Connection For Sucking Jet Pumps
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
