Removing Fuel Pump - Carrera 2

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn fuel pump anti-clockwise (bayonet lock) and guide it carefully out of the opening of the tank (pay attention to installation position).

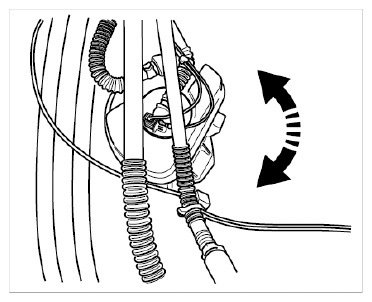

    Fig 1: Turning Fuel Pump Anti-Clockwise
    G09828263Courtesy of PORSCHE CARS NORTH AMERICA, INC.
