Preliminary Work - Carrera 4
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
- Place protective covers on the vehicle.
- Disconnect the battery.
- Remove luggage compartment cover.
→ 700519 REMOVING AND INSTALLING FRONT LUGGAGE COMPARTMENT TRIM PANEL - section on "Removing"
- Remove cover for tank flange.

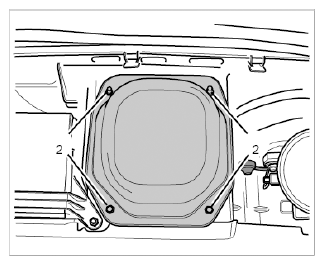

Unscrew four M6 cap nuts -2- , remove the four washers and lift off the cover. Check seal for signs of damage.
- Remove fuel level sensor.
→ 201519 REMOVING AND INSTALLING FUEL LEVEL SENSOR - section on "Removing"
- Drain the fuel tank until the fuel level is lower than the pump.
→ 2010EN DRAINING AND FILLING THE FUEL TANK - section on "Draining"
