Installing Fuel Pump - Carrera 4

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.

Install fuel pump.
1. 1.1. Guide the fuel pump into the fuel tank and set it down on the floor of the tank in order to connect the sucking jet pumps.
2. 1.2. Secure the sucking jet pumps using the retaining claws in the fuel pump.

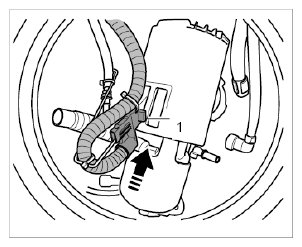

  Fig 1: Connecting Sucking Jet Pumps To Pump
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 1.3. Insert the fuel pump into the mounting and turn it clockwise as far as it will go.
4. 1.4. Connect line and hose connections to the fuel pump.
