Removing Leakage Diagnosis Pump

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2013 Porsche 911, 2012 Porsche 911, 2011 Porsche 911, 2010 Porsche 911, and 2009 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Carefully unclip sheetmetal clips on the carbon canister -1-  using a screwdriver (plastic container).

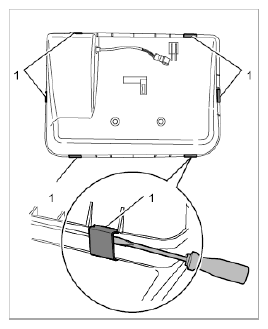

    Fig 1: Removing Sheetmetal Clips On Carbon Canister
    G09828210Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Carefully open the carbon canister using a rigid spatula or a wide screwdriver. -arrows-

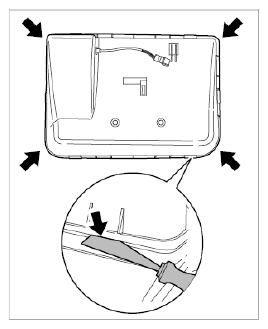

    Fig 2: Opening Carbon Canister
    G09828211Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove active carbon unit and lid.
  4. Unscrew Torx screw -1-  and pull off air filter.

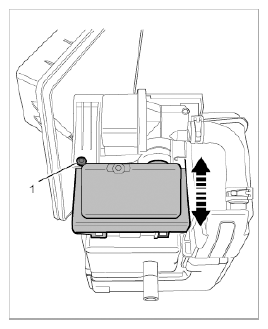

    Fig 3: Pulling Off Air Filter For Leakage Diagnosis Pump
    G09828212Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Unscrew three Torx screws -1-  used to secure the leakage diagnosis pump -3-  .

    Open the spring band clamp -2-  and pull off the hose.

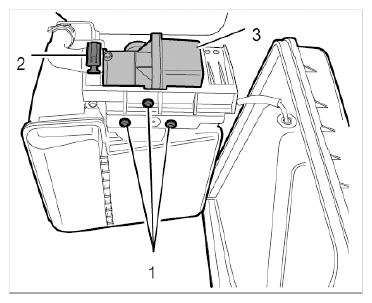

    Fig 4: Identifying Leakage Diagnosis Pump And Spring Band Clamp
    G09828213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Pull off cable plug for leakage diagnosis pump and remove carbon canister lid.
  7. Remove leakage diagnosis pump.
